ENGINE COOLING — Mercedes-Benz TYP 219 105.010: схема и номера деталей | Глав Авто
Запчасти
/
Mercedes-Benz · TYP 219 · 105.010

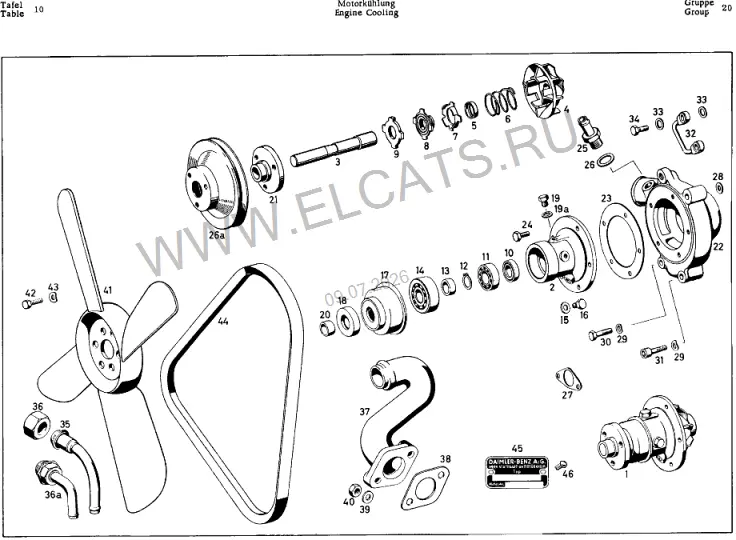

ENGINE COOLING
Детали узла
61
0
Код заменен на
36D000E3
code_image=http://www.elcats.ru/Codes.ashx?Key=PQsZeWXkUlAgDBRFnKEsTgapPQAe%2beZt0%2bXfByKSTEw%3d
0
WATER PUMP Код заменен на
373000E3
code_image=http://www.elcats.ru/Codes.ashx?Key=PQsZeWXkUlAgDBRFnKEsTh1V7ouXrQx0mXLf0hTnsOI%3d
0
WATER PUMP Код заменен на
FC000135
code_image=http://www.elcats.ru/Codes.ashx?Key=zFGNzlaaZjzpovcALaDOT4YWkRsv8LR5Qp%2fnsfhfoF0%3d
0
WATER PUMP АВТ. WITHOUT HOUSING UP TO ENGINE 8500401
C0900135
code_image=http://www.elcats.ru/Codes.ashx?Key=zFGNzlaaZjzpovcALaDOT6MwagwW3juN4eNgP2YOVOU%3d
0
WATER PUMP МЕХ. WITHOUT HOUSING UP TO ENGINE 8501890
C0900135
code_image=http://www.elcats.ru/Codes.ashx?Key=zFGNzlaaZjzpovcALaDOT6MwagwW3juN4eNgP2YOVOU%3d
1
BEARING HOUSING АВТ. UP TO ENGINE 8500401
02000136
code_image=http://www.elcats.ru/Codes.ashx?Key=2y6O2dGgUvWME28mjaSAqZ2ENbKPzhuiMmIqkl6WZyw%3d
1
BEARING HOUSING МЕХ. UP TO ENGINE 8501890
02000136
code_image=http://www.elcats.ru/Codes.ashx?Key=2y6O2dGgUvWME28mjaSAqZ2ENbKPzhuiMmIqkl6WZyw%3d
1
WATER PUMP АВТ. WITHOUT HOUSING FROM ENGINE 8500402
111000E4
code_image=http://www.elcats.ru/Codes.ashx?Key=PQsZeWXkUlAgDBRFnKEsTmr5mc8lamR5QSY3llQ%2bOVM%3d
1
WATER PUMP МЕХ. WITHOUT HOUSING FROM ENGINE 8501891
111000E4
code_image=http://www.elcats.ru/Codes.ashx?Key=PQsZeWXkUlAgDBRFnKEsTmr5mc8lamR5QSY3llQ%2bOVM%3d
10
SEALING RING
D13000EB
code_image=http://www.elcats.ru/Codes.ashx?Key=8pr2LClwwxwppOe6bW8K0j4YN7oQtRD9mLiT5WJ3Ga8%3d
1 шт
13
SPACER SLEEVE
EEB00135
code_image=http://www.elcats.ru/Codes.ashx?Key=2y6O2dGgUvWME28mjaSAqfaMgEaA%2fD1vQLoQLPrbH6o%3d
1 шт
17
SEALING RING HOLDER
F6400137
code_image=http://www.elcats.ru/Codes.ashx?Key=zFGNzlaaZjzpovcALaDOT9hP5LPmXLl6uGVbwdWeZ04%3d
1 шт
18
SEALING RING
E0700138
code_image=http://www.elcats.ru/Codes.ashx?Key=e47LwZcYqZbuZY%2fk1NPA%2b2NoBSBkJ2BjfCrhI4s84Dw%3d
1 шт
19
SCREW PLUG FOR VENTING TO BEARING HOUSING
5F300139
code_image=http://www.elcats.ru/Codes.ashx?Key=d9q7kgQQ4v99B1NR%2bo4W67noVqW6zEOT3uQ%2fhZKK%2f0g%3d
1 шт
2
BEARING HOUSING АВТ. FROM ENGINE 8500402
2AA000E3
code_image=http://www.elcats.ru/Codes.ashx?Key=IzMx3HuhYAHv9g7zbwVQT%2fs304nsst%2bnPMcnTY28Dc0%3d
2
BEARING HOUSING МЕХ. FROM ENGINE 8501891
2AA000E3
code_image=http://www.elcats.ru/Codes.ashx?Key=IzMx3HuhYAHv9g7zbwVQT%2fs304nsst%2bnPMcnTY28Dc0%3d
20
INTERMEDIATE RING
F6900135
code_image=http://www.elcats.ru/Codes.ashx?Key=2y6O2dGgUvWME28mjaSAqX3tBhxp1Do9WMqkUV98XPQ%3d
1 шт
21
HUB
CC600135
code_image=http://www.elcats.ru/Codes.ashx?Key=apiYU%2b%2bWCAdWGhka6O%2fIQgxfHSqFql0GVzqTZODvZI4%3d
1 шт
21
WATER PUMP HOUSING UP TO ENGINE N 8506538 UP TO ENGINE Z 8501565 LOCK CONNECTION HOLE FOR SHORT CIRCUIT PIPE WITH LOCKING SCREW M 1 Код заменен на
43F000E3
code_image=http://www.elcats.ru/Codes.ashx?Key=IzMx3HuhYAHv9g7zbwVQT1odiI3IgLn9jndhErmNCN0%3d
21
WATER PUMP HOUSING АВТ. UP TO ENGINE 8500401
FE400135
code_image=http://www.elcats.ru/Codes.ashx?Key=2y6O2dGgUvWME28mjaSAqQawbHhEcekXoIom2U3Zhvo%3d
21
WATER PUMP HOUSING МЕХ. UP TO ENGINE 8501890
FE400135
code_image=http://www.elcats.ru/Codes.ashx?Key=2y6O2dGgUvWME28mjaSAqQawbHhEcekXoIom2U3Zhvo%3d
22
GASKET АВТ. FOR WATER PUMP HOUSING AT BEARING HOUSING UP TO ENGINE 8500401
E4000135
code_image=http://www.elcats.ru/Codes.ashx?Key=2y6O2dGgUvWME28mjaSAqa2%2bQjfI5izGWl5DC2FSuGs%3d
22
GASKET МЕХ. FOR WATER PUMP HOUSING AT BEARING HOUSING UP TO ENGINE 8501890
E4000135
code_image=http://www.elcats.ru/Codes.ashx?Key=2y6O2dGgUvWME28mjaSAqa2%2bQjfI5izGWl5DC2FSuGs%3d
22
WATER PUMP АВТ. HOUSING UP TO ENGINE N 8506538 UP TO ENGINE Z 8501565 LOCK CONNECTION HOLE FOR SHORT CIRCUIT PIPE WITH LOCKING SCREW M 1
E77000E3
code_image=http://www.elcats.ru/Codes.ashx?Key=IzMx3HuhYAHv9g7zbwVQT1mE52S52iXE0PYma%2bOspIM%3d
22
WATER PUMP МЕХ. HOUSING UP TO ENGINE N 8506538 UP TO ENGINE Z 8501565 LOCK CONNECTION HOLE FOR SHORT CIRCUIT PIPE WITH LOCKING SCREW M 1
E77000E3
code_image=http://www.elcats.ru/Codes.ashx?Key=IzMx3HuhYAHv9g7zbwVQT1mE52S52iXE0PYma%2bOspIM%3d
23
GASKET АВТ. FOR WATER PUMP HOUSING AT BEARING HOUSING FROM ENGINE 8500402
FB0000E2
code_image=http://www.elcats.ru/Codes.ashx?Key=IzMx3HuhYAHv9g7zbwVQT5ctcdExiTKOeNk4QoAr37I%3d
23
GASKET МЕХ. FOR WATER PUMP HOUSING AT BEARING HOUSING FROM ENGINE 8501891
FB0000E2
code_image=http://www.elcats.ru/Codes.ashx?Key=IzMx3HuhYAHv9g7zbwVQT5ctcdExiTKOeNk4QoAr37I%3d
25
THREADED NIPPLE АВТ. UP TO ENGINE 8500401 FROM ENGINE 8501566
E1600135
code_image=http://www.elcats.ru/Codes.ashx?Key=tdWxCQqd1kkfbG5wwP4%2f8NIfz7wMrOBHf3ko6rNTMH0%3d
25
THREADED NIPPLE МЕХ. UP TO ENGINE 8501890 FROM ENGINE 8506539
E1600135
code_image=http://www.elcats.ru/Codes.ashx?Key=tdWxCQqd1kkfbG5wwP4%2f8NIfz7wMrOBHf3ko6rNTMH0%3d
26a
PULLEY ON HUB FOR WATER PUMP
F9000135
code_image=http://www.elcats.ru/Codes.ashx?Key=wFP5233d2TwthAOntp2gl3CE34KWg%2b0QVkm0JBiyIgQ%3d
1 шт
27
GASKET FOR WATER PUMP AT CYLINDER CRANKCASE
ED600135
code_image=http://www.elcats.ru/Codes.ashx?Key=tdWxCQqd1kkfbG5wwP4%2f8DZIy3IgI4RUG2PzNKDsffo%3d
1 шт
28
SEALING RING FOR WATER PUMP AT CYLINDER CRANKCASE
CC900135
code_image=http://www.elcats.ru/Codes.ashx?Key=tdWxCQqd1kkfbG5wwP4%2f8DgIK8Eo%2b71XkNhP0lIZlxk%3d
1 шт
28
BREATHER PIPE АВТ. FOR WATER PUMP UP TO ENGINE 8500401
C0000135
code_image=http://www.elcats.ru/Codes.ashx?Key=zFGNzlaaZjzpovcALaDOTzPk7M7GwwrRq3eJDxPz5uY%3d
28
BREATHER PIPE МЕХ. FOR WATER PUMP UP TO ENGINE 8501890
C0000135
code_image=http://www.elcats.ru/Codes.ashx?Key=zFGNzlaaZjzpovcALaDOTzPk7M7GwwrRq3eJDxPz5uY%3d
3
WATER PUMP SHAFT
FC900135
code_image=http://www.elcats.ru/Codes.ashx?Key=2y6O2dGgUvWME28mjaSAqUqjTDXvFkmdd0JnfdeQ6%2fY%3d
1 шт
3
IMPELLER АВТ. UP TO ENGINE 8500401
E2500135
code_image=http://www.elcats.ru/Codes.ashx?Key=2y6O2dGgUvWME28mjaSAqfzpF5s5m%2bT2vkucQgn9IQo%3d
3
IMPELLER МЕХ. UP TO ENGINE 8501890
E2500135
code_image=http://www.elcats.ru/Codes.ashx?Key=2y6O2dGgUvWME28mjaSAqfzpF5s5m%2bT2vkucQgn9IQo%3d
32
BREATHER PIPE АВТ. FOR WATER PUMP FROM ENGINE 8500402
D4D00135
code_image=http://www.elcats.ru/Codes.ashx?Key=zFGNzlaaZjzpovcALaDOT%2fugfss1ZFCDfAC34ifPhQw%3d
32
BREATHER PIPE МЕХ. FOR WATER PUMP FROM ENGINE 8501891
D4D00135
code_image=http://www.elcats.ru/Codes.ashx?Key=zFGNzlaaZjzpovcALaDOT%2fugfss1ZFCDfAC34ifPhQw%3d
35
TUBE ELBOW АВТ. FOR HEATING CONNECTION UP TO ENGINE 8500987
C3000135
code_image=http://www.elcats.ru/Codes.ashx?Key=zFGNzlaaZjzpovcALaDOTwLWF6P8MensuizUtkOs7vM%3d
35
TUBE ELBOW МЕХ. FOR HEATING CONNECTION UP TO ENGINE 8504173
C3000135
code_image=http://www.elcats.ru/Codes.ashx?Key=zFGNzlaaZjzpovcALaDOTwLWF6P8MensuizUtkOs7vM%3d
36a
GROMMET FOR LOCKING CONNECTION AT COOLING WATER RETURN FLOW TUBE EXPORT, TROPICS
9E5000C5
code_image=http://www.elcats.ru/Codes.ashx?Key=qeVWBXFIMGicB%2bTfZiN6psfrx4%2fm9NGu2ceooTT%2fGwc%3d
1 шт
36a
HEATING CONNECTION АВТ. FROM ENGINE 8500988
CC000135
code_image=http://www.elcats.ru/Codes.ashx?Key=zFGNzlaaZjzpovcALaDOTxw0Y30RFjNwlIW3AqN6w7A%3d
36a
HEATING CONNECTION МЕХ. FROM ENGINE 8504174
CC000135
code_image=http://www.elcats.ru/Codes.ashx?Key=zFGNzlaaZjzpovcALaDOTxw0Y30RFjNwlIW3AqN6w7A%3d
37
COOLING WATER
00500136
code_image=http://www.elcats.ru/Codes.ashx?Key=tdWxCQqd1kkfbG5wwP4%2f8O5oBM8mg2QI8ETQbu5%2f3vw%3d
1 шт
38
GASKET FOR COOLING WATER DISCHARGE NIPPLE AT CYLINDER HEAD
F1800135
code_image=http://www.elcats.ru/Codes.ashx?Key=tdWxCQqd1kkfbG5wwP4%2f8NL%2fmM6qnHxZwSJz6hsyAQI%3d
1 шт
4
COVER FOR SEALING RING HOLDER Код заменен на
FC0002A9
code_image=http://www.elcats.ru/Codes.ashx?Key=T3NeCBSYFeSLv%2bvUya6NS0R%2fEi2IM4cao%2bSEwxM6tUY%3d
4
IMPELLER X FROM ENGINE 8500402
18D000E3
code_image=http://www.elcats.ru/Codes.ashx?Key=IzMx3HuhYAHv9g7zbwVQTxrFJiloCv4fJldBMowzuoI%3d
4
IMPELLER МЕХ. FROM ENGINE 8501891
18D000E3
code_image=http://www.elcats.ru/Codes.ashx?Key=IzMx3HuhYAHv9g7zbwVQTxrFJiloCv4fJldBMowzuoI%3d
40
HEX. NUT FOR COOLING WATER DISCHARGE NIPPLE AT CYLINDER HEAD
61A00046
code_image=http://www.elcats.ru/Codes.ashx?Key=diPViVXk5A3NiVu2GqV2krTM35zEhpkmwSJ%2f7DzZ36E%3d
2 шт
41
FAN
E8500135
code_image=http://www.elcats.ru/Codes.ashx?Key=wFP5233d2TwthAOntp2gl00B8s5AIdH5nC3Dw0QM3LM%3d
1 шт
41
FAN
F6D00137
code_image=http://www.elcats.ru/Codes.ashx?Key=wFP5233d2TwthAOntp2gl54f9QdnWyQOEkHAxJMHurk%3d
1 шт
41
FAN EXPORT, TROPICS
C7B00135
code_image=http://www.elcats.ru/Codes.ashx?Key=zFGNzlaaZjzpovcALaDOT2BCXW6Uw3PHmQ44B9oOtR8%3d
1 шт
41
SHIM FOR FAN AT PULLEY EXPORT, TROPICS
F7000137
code_image=http://www.elcats.ru/Codes.ashx?Key=wFP5233d2TwthAOntp2glyHzyDPnnH8Tat6zWc7NE3U%3d
1 шт
5
COVER FOR SEALING RING HOLDER
E1B002AA
code_image=http://www.elcats.ru/Codes.ashx?Key=T3NeCBSYFeSLv%2bvUya6NS6jb5BF3Q8as8bdXQLCXkmY%3d
1 шт
6
PRESSURE SPRING
91800138
code_image=http://www.elcats.ru/Codes.ashx?Key=Q2qYZgxaFoOSeoLVgqNTtT3A1Yk%2fGtNTJh7y%2fLpzHdk%3d
1 шт
6
SLIP RING CAGE Код заменен на
047002AA
code_image=http://www.elcats.ru/Codes.ashx?Key=T3NeCBSYFeSLv%2bvUya6NS8xdxWsdKfIgxQUZe5lN0VA%3d
7
SEALING RING Код заменен на
F24002A9
code_image=http://www.elcats.ru/Codes.ashx?Key=T3NeCBSYFeSLv%2bvUya6NSxhDluDhXUdwo3ietPHf41A%3d
7
SLIP RING CAGE
011002AA
code_image=http://www.elcats.ru/Codes.ashx?Key=T3NeCBSYFeSLv%2bvUya6NSz6O7E68Ze4Y6Zy9YGHJoXA%3d
1 шт
8
SEALING RING
182002AA
code_image=http://www.elcats.ru/Codes.ashx?Key=T3NeCBSYFeSLv%2bvUya6NS0KwXFiXX0WHsfihmFl3RIw%3d
1 шт
9
SLIP RING
164002AA
code_image=http://www.elcats.ru/Codes.ashx?Key=T3NeCBSYFeSLv%2bvUya6NSxk3dzE4wvgHQ2ENex5xtxg%3d
1 шт
