ELECTRICAL EQUIPMENT AT ENGINE / ELECTRICAL EQUIPMENT AT ENGINE — Mercedes-Benz TYP 180 120.000: схема и номера деталей | Глав Авто
Запчасти
/
ELECTRICAL EQUIPMENT AT ENGINE / ELECTRICAL EQUIPMENT AT ENGINE
Mercedes-Benz · TYP 180 · 120.000
ELECTRICAL EQUIPMENT AT ENGINE / ELECTRICAL EQUIPMENT AT ENGINE

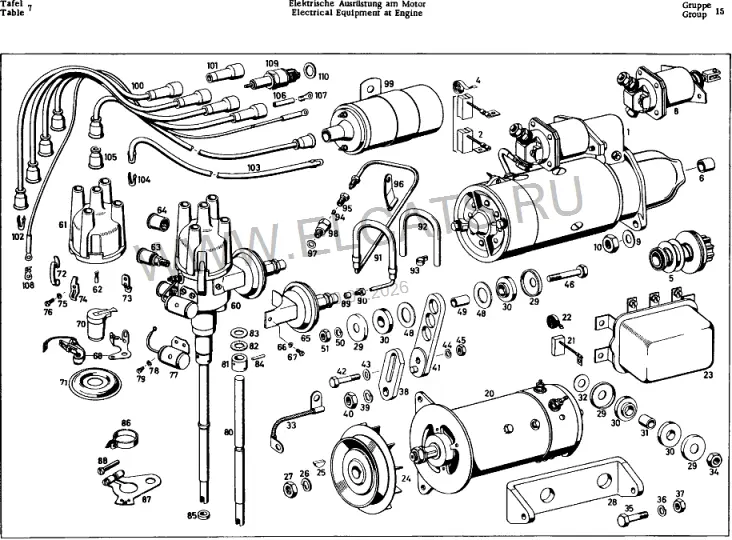

ELECTRICAL EQUIPMENT AT ENGINE [Z08]
Детали узла
75
1
STARTER MOTOR
BFB00005
code_image=http://www.elcats.ru/Codes.ashx?Key=i4hodB7Gy%2fcfUz9jD0Pgv3ucPHO8%2btSEG9sqhp13fWI%3d
1 шт
100
SET OF IGNITION CABLES
06400137
code_image=http://www.elcats.ru/Codes.ashx?Key=EmZwd4aFlZkkO5CV%2feejh3HmALUMcyY7p7eiRzrFeSY%3d
1 шт
101
IGNITION CABLE PLUG OPTIONAL
00200007
code_image=http://www.elcats.ru/Codes.ashx?Key=oD6YkNI5dPFnZSHGxlAmgzziKS5UvclQcoNmpTj%2btP4%3d
4 шт
101
IGNITION CABLE PLUG OPTIONAL
17C00007
code_image=http://www.elcats.ru/Codes.ashx?Key=oD6YkNI5dPFnZSHGxlAmgwDfBFVwbIHjTh%2bLjsMQVD4%3d
4 шт
102
CABLE SLEEVE
5BD00007
code_image=http://www.elcats.ru/Codes.ashx?Key=oD6YkNI5dPFnZSHGxlAmg1Jq7%2bCQPkdwjttDyw27N%2bE%3d
4 шт
103
IGNITION CABLE
4C900137
code_image=http://www.elcats.ru/Codes.ashx?Key=EmZwd4aFlZkkO5CV%2feejhzxU2goTM%2f6qKBAnfZwwVxM%3d
1 шт
104
CABLE SLEEVE
5BD00007
code_image=http://www.elcats.ru/Codes.ashx?Key=oD6YkNI5dPFnZSHGxlAmg1Jq7%2bCQPkdwjttDyw27N%2bE%3d
2 шт
105
RAIN PROTECTIVE CAP
2FF00007
code_image=http://www.elcats.ru/Codes.ashx?Key=oD6YkNI5dPFnZSHGxlAmgxrCRbmXqY7A6iaPOPvuDIA%3d
6 шт
106
GROMMET
45D000F8
code_image=http://www.elcats.ru/Codes.ashx?Key=MAFS1tva%2bOCTsPEp7VC5T9bYxg%2bcXuEl7c3KTpjC0Z8%3d
2 шт
106
RUBBER CAP FOR IGNITION CABLE SPECIAL REQUEST FOR ULTRA-SHORT WAVE INTERFERENCE SUPPRESSION
60B00007
code_image=http://www.elcats.ru/Codes.ashx?Key=oD6YkNI5dPFnZSHGxlAmg2EolN3CvbXOLHlar3icOdo%3d
5 шт
106
INTERFERENCE SUPPRESSOR PLUG FOR IGNITION CABLE SPECIAL REQUEST FOR ULTRA-SHORT WAVE INTERFERENCE SUPPRESSION
9C300006
code_image=http://www.elcats.ru/Codes.ashx?Key=9YP5ASxj33MqB8rqx0mq46vKXlA%2fhZZ9mXRNsX6RbWI%3d
5 шт
109
BUSHING-TYPE CONDENSER FOR IGNITION COIL TERMINAL 15 SPECIAL REQUEST FOR ULTRA-SHORT WAVE INTERFERENCE SUPPRESSION
C0200007
code_image=http://www.elcats.ru/Codes.ashx?Key=9YP5ASxj33MqB8rqx0mq443IrQTAJIB64VVfBxDzVoY%3d
1 шт
109
SPARK PLUG, INTERFERENCE-FREE SPECIAL REQUEST FOR ULTRA-SHORT WAVE INTERFERENCE SUPPRESSION
4B200007
code_image=http://www.elcats.ru/Codes.ashx?Key=oD6YkNI5dPFnZSHGxlAmg2GzZl0J14MX0HrlltRvEl4%3d
4 шт
109
SPARK PLUG OPTIONAL
02900007
code_image=http://www.elcats.ru/Codes.ashx?Key=oD6YkNI5dPFnZSHGxlAmgywHIciOwxB8HajmjUivNW8%3d
4 шт
109
SPARK PLUG OPTIONAL
59000007
code_image=http://www.elcats.ru/Codes.ashx?Key=oD6YkNI5dPFnZSHGxlAmg32tVcPzffl%2bv7thCkdW0zU%3d
4 шт
109
SPARK PLUG OPTIONAL
74600007
code_image=http://www.elcats.ru/Codes.ashx?Key=oD6YkNI5dPFnZSHGxlAmg%2fxtd4B9xQ%2fno1cuay%2b%2fSV8%3d
4 шт
2
SET OF CARBON BRUSHES 4 PIECES
50B00005
code_image=http://www.elcats.ru/Codes.ashx?Key=i4hodB7Gy%2fcfUz9jD0Pgv0HhQtQseORTsucm4O5AJ60%3d
1 шт
20
GENERATOR WITHOUT REGULATOR FROM ENGINE NO. 45 04194
63900006
code_image=http://www.elcats.ru/Codes.ashx?Key=b6o6JGO%2by%2bMLTFLNY9DVk4VkranrF%2f4h3dpkJfkIfEI%3d
1 шт
21
SET OF CARBON BRUSHES 2 PIECES
AEC00006
code_image=http://www.elcats.ru/Codes.ashx?Key=b6o6JGO%2by%2bMLTFLNY9DVk9Rl7rPKfAv2ePTO0xjeYZA%3d
1 шт
22
PRESSURE SPRING FOR CARBON BRUSH
95600007
code_image=http://www.elcats.ru/Codes.ashx?Key=b6o6JGO%2by%2bMLTFLNY9DVk1so7KtD2RWyAWmHD%2bo2LnU%3d
2 шт
22
REGULATOR SWITCH UP TO ENGINE NO. 45 04397 SEE ALSO GROUP 54
73200006
code_image=http://www.elcats.ru/Codes.ashx?Key=b6o6JGO%2by%2bMLTFLNY9DVk0dJAsf5Gno%2b130H2a5BHKY%3d
1 шт
23
BUSHING-TYPE CONDENSER AT GENERATOR, TERMINAL 51 SPECIAL REQUEST ULTRA-SHORT WAVE INTERFERENCE SUPPRESSION
C0200007
code_image=http://www.elcats.ru/Codes.ashx?Key=9YP5ASxj33MqB8rqx0mq443IrQTAJIB64VVfBxDzVoY%3d
1 шт
23
VOLTAGE REGULATOR FOR GENERATOR FROM ENGINE NO. 45 04398
55800006
code_image=http://www.elcats.ru/Codes.ashx?Key=b6o6JGO%2by%2bMLTFLNY9DVk3tV7VQ9Pkw%2fFuSMF%2fgfMe0%3d
1 шт
24
PULLEY OPTIONAL FOR GENERATOR
1E100137
code_image=http://www.elcats.ru/Codes.ashx?Key=EmZwd4aFlZkkO5CV%2feejh%2bDhGZfxQaQt6sm9ebcTag8%3d
1 шт
24
PULLEY OPTIONAL FOR GENERATOR
34900137
code_image=http://www.elcats.ru/Codes.ashx?Key=EmZwd4aFlZkkO5CV%2feejh%2b1h4rhiArJbKGXPyQ3S97Y%3d
1 шт
28
SUPPORT FOR GENERATOR
6E1000EA
code_image=http://www.elcats.ru/Codes.ashx?Key=JOByUR7a7OVrC40oTOqL020hAcK89RfVkMG62JFlv9Q%3d
1 шт
29
PLANE WASHER FOR GENERATOR SUSPENSION
267000EA
code_image=http://www.elcats.ru/Codes.ashx?Key=JOByUR7a7OVrC40oTOqL0%2fzu2TNmIOeOr5JNepScddQ%3d
6 шт
30
RUBBER WASHER FOR GENERATOR SUSPENSION
B00000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=bfJATkbpo%2fCPffABxhd3RBgR0dSBEiIg5B0LPfbIO0s%3d
6 шт
31
SLEEVE FOR GENERATOR SUSPENSION
840000EA
code_image=http://www.elcats.ru/Codes.ashx?Key=JOByUR7a7OVrC40oTOqL07V%2bRnDUB0hict0lhbiWmkI%3d
2 шт
32
WASHER TO FIX GROUND CABLE TO GENERATOR
72A00137
code_image=http://www.elcats.ru/Codes.ashx?Key=4JGNBdLdN9elETV77DuMmugCJp66xbvp9kIBxjtUXHc%3d
1 шт
33
GROUND CABLE FOR GENERATOR
069000EA
code_image=http://www.elcats.ru/Codes.ashx?Key=smxY3FShFhffgj%2bKGmQDfFw4MI38PCTJUzmTo1JwGZA%3d
1 шт
38
RETAINING RAIL
5DF000EA
code_image=http://www.elcats.ru/Codes.ashx?Key=JOByUR7a7OVrC40oTOqL073EP8TEnjQhtMkfHJheuuw%3d
1 шт
4
PRESSURE SPRING FOR CARBON BRUSH
1B100005
code_image=http://www.elcats.ru/Codes.ashx?Key=i4hodB7Gy%2fcfUz9jD0Pgv84RRBox8uD2rL5faMHNq%2b8%3d
4 шт
41
BRACKET
4B400137
code_image=http://www.elcats.ru/Codes.ashx?Key=EmZwd4aFlZkkO5CV%2feejh6lSCtQYkZWbL4IN0WmA10A%3d
1 шт
48
WASHER FOR UPPER GENERATOR SUSPENSION
3D4000EB
code_image=http://www.elcats.ru/Codes.ashx?Key=O5oXOLwqGqjZLMRqj5A9BR9%2f0Q3MTOxf3F2rINmbLoA%3d
2 шт
49
SLEEVE FOR UPPER GENERATOR SUSPENSION
843000EA
code_image=http://www.elcats.ru/Codes.ashx?Key=JOByUR7a7OVrC40oTOqL06S%2fPHrD%2bOha91Wz9DCg2oo%3d
1 шт
5
ROLLER-TYPE FREE-WHEEL UNIT WITH PINION, 9 TEETH
3EA00006
code_image=http://www.elcats.ru/Codes.ashx?Key=i4hodB7Gy%2fcfUz9jD0PgvzN22eKx2frIOzPHxEiCneg%3d
1 шт
6
BEARING BUSHING IN PINION BEARING AND COMMUTATOR BEARING
1DE00005
code_image=http://www.elcats.ru/Codes.ashx?Key=i4hodB7Gy%2fcfUz9jD0Pgv9mwbcXkofDbbOMR4XRrRwg%3d
2 шт
60
DISTRIBUTOR PLATE FOR DISTRIBUTOR ROTOR 000 158 07 31 UP TO ENGINE NO. 35 03166
21400008
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rQnRsTptSKgLQg26w3S81hc%3d
1 шт
60
DISTRIBUTOR PLATE FOR DISTRIBUTOR ROTOR 000 158 10 31 UP TO ENGINE NO. 35 03166
EE800006
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rZZL28LSRztGuoHpXi3rUtc%3d
1 шт
60
IGNITION DISTRIBUTOR WITH DRIVE SHAFT WITH DUST PROTECTIVE COVER AND INTERFERENCE-FREE
17500137
code_image=http://www.elcats.ru/Codes.ashx?Key=EmZwd4aFlZkkO5CV%2feejh7ri4Lr4aMAeq5tVaE0oCKU%3d
1 шт
61
DISTRIBUTOR PLATE FROM ENGINE NO. 35 03167
C5000007
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rZWn7TVR4Q8aJo5CzP9PP58%3d
1 шт
62
CARBON BRUSH WITH SPRING
E0D00006
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rXGeXzq6T934oWnDmDDISYs%3d
1 шт
63
GREASE CUP
EF100006
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4ravfJ8PluPJgBWraArMAmuo%3d
1 шт
64
CAP
CD800006
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rYe9WJBblIsaq%2bTc%2bqdiuHk%3d
1 шт
65
VACUUM BOX
F2D00006
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rUFM3UIimyprIFA97KTVxrs%3d
1 шт
68
CONTACT SET
8D100008
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rSsNP%2bKGm6M1rkcZD0x82rc%3d
1 шт
68
REPLACED BY 000 158 10 31 TOGETHER WITH 1 DISTRIBUTOR PLATE 000 158 08 02 UP TO ENGINE NO. 35 03166
06E00007
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rWvePdzujOsGFg8V27Xk52M%3d
68
DISTRIBUTOR ROTOR FOR IGNITION DISTRIBUTOR VEU 4 R 11 UP TO ENGINE NO. 35 03166
F3C00006
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4reoPvdUyy9mY%2bsK6tQgyaVA%3d
1 шт
68
DISTRIBUTOR ROTOR INTERFERENCE-FREE UP TO ENGINE NO. 35 03166
3E300007
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rYXdlu1o3Zg4Cadhu2S93nE%3d
1 шт
70
DISTRIBUTOR ROTOR DUST-PROOF DESIGN FROM ENGINE NO. 35 03167
8D700008
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rXd3Hygf6FkPL3nTHPCg924%3d
1 шт
70
DISTRIBUTOR ROTOR INTERFERENCE-FREE DUST-PROOF DESIGN SPECIAL REQUEST
15E00007
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rTVCtpwA4TY3DUyapabMlP4%3d
1 шт
71
DUST PROTECTIVE COVER FOR DUST-PROOF DESIGN FROM ENGINE NO. 55 00868
E8800006
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rYhAZta1kqweDj1gcSZoaHA%3d
1 шт
72
LEAF SPRING FOR DISTRIBUTOR PLATE
E1900006
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rROT7J2jWh%2bHZLn%2b4hgodWo%3d
2 шт
73
FIXING SHACKLE WITHOUT NOSE
ED900006
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rcU8XexHTbVwkvPRDouNTQ8%3d
1 шт
74
FIXING SHACKLE WITH NOSE
E5200006
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rVY6%2b2jJ4bMAGUXHx1n%2bXmE%3d
1 шт
77
CONDENSER
91500006
code_image=http://www.elcats.ru/Codes.ashx?Key=9YP5ASxj33MqB8rqx0mq45%2fqMTf1uw1m38CHChN54eQ%3d
1 шт
8
SOLENOID SWITCH
BB800006
code_image=http://www.elcats.ru/Codes.ashx?Key=IhMkB4KFd623XD0olSD5ndpDtzg9tEv6FTwhTkHldTE%3d
1 шт
8
GENERATOR REPLACED BY 000 154 28 02 TOGETHER WITH 1 VOLTAGE REGULATOR 000 154 54 06 1 SET OF CABLES 120 540 03 08 1 BRACKET 10 120 620 00 3
8C100006
code_image=http://www.elcats.ru/Codes.ashx?Key=b6o6JGO%2by%2bMLTFLNY9DVk6w%2fI9mCVzf1BeRixCddPx4%3d
1 шт
80
DRIVE SHAFT FOR IGNITION DISTRIBUTOR
F2700006
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rWMKGUui5Mppghc%2fPYK9HKs%3d
1 шт
81
FOLLOWER
20E00008
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rboCHl90OpRW%2bAYMW0VcaNk%3d
1 шт
82
FIBER WASHER
D5900006
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rbioZ%2bYwb1xztMorm9ajVz8%3d
1 шт
83
WASHER
E7000006
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rVjNxzxFtk5z2SAbHIkwl%2fc%3d
1 шт
84
PIN
F2A00006
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rWnCbzRFJb41p1Az4PVftEg%3d
2 шт
85
RUBBER SEALING RING ON DRIVE SHAFT FROM ENGINE NO. 45 06661
9C600135
code_image=http://www.elcats.ru/Codes.ashx?Key=SBmn6OxmjIabHxx5VnXtaSGrtX2eSgZOnH2muQypI1c%3d
1 шт
86
ADJUSTING RING
D5300006
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4raP6jjdrYjZMKsYGZGu7FsA%3d
1 шт
87
ADJUSTING PLATE WITH STOP
DD700006
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rUaQBMEdPYRodGEifg2ixr8%3d
1 шт
89
SEALING RING
C4A00007
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rYSAjfRot2JfcGJhxh9ZhLw%3d
1 шт
90
THREADED BUSHING
CD500006
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rUaQ5CsWMpPA11a8%2fHCz1xk%3d
1 шт
91
VACUUM LINE
52F00137
code_image=http://www.elcats.ru/Codes.ashx?Key=EmZwd4aFlZkkO5CV%2feejh%2b3Mym0%2bGaWbulD1dzo%2faPQ%3d
1 шт
92
RUBBER HOSE FOR VACUUM LINE FROM CARBURETOR TO IGNITION DISTRIBUTOR
65200137
code_image=http://www.elcats.ru/Codes.ashx?Key=V%2bd3k3E9XZZM3vJGfCyyYo8HSdK8UW%2bvuDNgB%2f9kyOI%3d
1 шт
93
HOSE STRAP FOR RUBBER HOSE AT VACUUM LINE
51B00139
code_image=http://www.elcats.ru/Codes.ashx?Key=V%2bd3k3E9XZZM3vJGfCyyYhKMCm8%2f9p%2bQQ51AbEft49Y%3d
2 шт
96
PIPE CLAMP
9AC00137
code_image=http://www.elcats.ru/Codes.ashx?Key=U6xI%2f%2ba%2fbImTv0J0teg8K8o5GPHRKzyYVbVY9blxWxQ%3d
1 шт
98
CONNECTING PIECE FOR CONNECTION OF VACUUM LINE TO CARBURETOR
6D600137
code_image=http://www.elcats.ru/Codes.ashx?Key=Q6CRsBNyzgw8Cx2%2f6AQTRcxc13n%2bPHnu%2ft8UYuTtokU%3d
1 шт
99
IGNITION COIL SEE ALSO GROUP 54
E5500006
code_image=http://www.elcats.ru/Codes.ashx?Key=t1oOqZBXaEEHVaHs7oy4rcNOgm2Qu%2boUy%2f2uX6KR5PI%3d
1 шт
