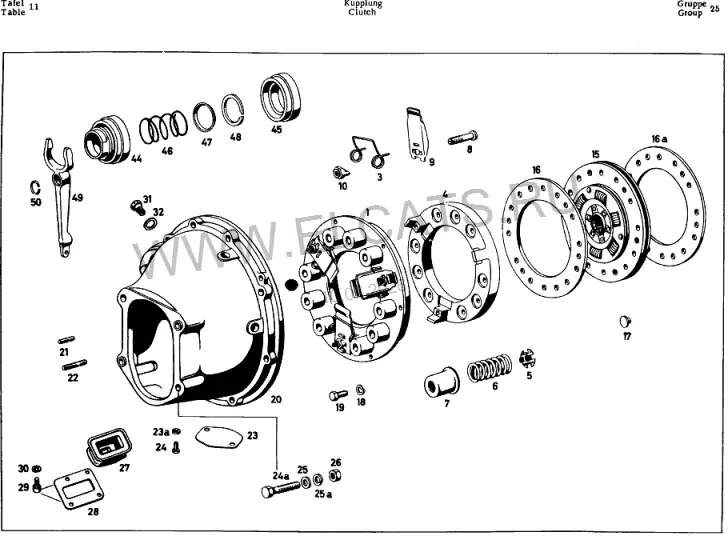

CLUTCH / CLUTCH — Mercedes-Benz TYP 180 120.000: схема и номера деталей | Глав Авто
Запчасти
/
CLUTCH / CLUTCH
Mercedes-Benz · TYP 180 · 120.000
CLUTCH / CLUTCH
CLUTCH [Z08]
Детали узла
31
1
CLUTCH K 12
381000EA
code_image=http://www.elcats.ru/Codes.ashx?Key=bLE8foVyPxqXrrIXhHrb6Ue8G90W9RiWi6K0Fmsgww0%3d
1 шт
10
BALL NUT
86100009
code_image=http://www.elcats.ru/Codes.ashx?Key=utM%2f0s0o3Phtdi2tWCmJd%2bWMdoBVR61qyo1KIStpNbA%3d
3 шт
15
CLUTCH FOLLOWER DISC WITH LINING
A94000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=wSRO%2bwQnrV5UgQHuk5L4hCCXyXfRkvnhrr9t1yJLVdQ%3d
1 шт
16
CLUTCH LINING
62900139
code_image=http://www.elcats.ru/Codes.ashx?Key=iFaYdRFO0bg5F4rg%2fBaSkfkxpjF2iVzj%2boyAkkgH6JA%3d
1 шт
16a
CLUTCH LINING FLYWHEEL END
E3F000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=wOeuq7pob2C%2bLltIQEZQPLhMtCgi3Q4m4SauQx0fEFg%3d
1 шт
17
REPLACED BY X 120 250 14 05 TOGETHER WITH 1 STUD BOLT 636 990 02 05 1 HEX. NUT M 10 DIN 934-5 S UP TO TRANSMISSION NO. 45 13621
FCD000C5
code_image=http://www.elcats.ru/Codes.ashx?Key=ojCObQlnuMsmMC6So4oOqpTg7GOdC22%2fPttoP2T0c9c%3d
17
HOLLOW RIVET FOR CLUTCH LINING
58D000EB
code_image=http://www.elcats.ru/Codes.ashx?Key=O5oXOLwqGqjZLMRqj5A9BQdiEGuu5P9le%2bE6gt%2f3HLI%3d
12 шт
20
REPLACED BY X 120 250 13 05 TOGETHER WITH 1 STUD BOLT 636 990 02 05 1 HEX. NUT M 10 DIN 934-5 S UP TO TRANSMISSION NO. 45 13621
DDB000C5
code_image=http://www.elcats.ru/Codes.ashx?Key=ojCObQlnuMsmMC6So4oOqhq79OAxAmJUG1WFOwkEA1w%3d
20
CLUTCH HOUSING X FROM TRANSMISSION NO. 45 13622
6D3000C5
code_image=http://www.elcats.ru/Codes.ashx?Key=ojCObQlnuMsmMC6So4oOqoP2VuUsa69vImFK75FMg5A%3d
1 шт
20
CLUTCH HOUSING X WITH FLEXIBLE SWIVEL SUPPORT FROM TRANSMISSION NO. 65 12171
BEF000C5
code_image=http://www.elcats.ru/Codes.ashx?Key=ojCObQlnuMsmMC6So4oOqqboxtcyhHfCAOy2B%2fUFbws%3d
1 шт
20
CLUTCH HOUSING X WITHOUT FLEXIBLE SWIVEL SUPPORT FROM TRANSMISSION NO. 45 13622 TO NO. 65 12170
FD0000C5
code_image=http://www.elcats.ru/Codes.ashx?Key=ojCObQlnuMsmMC6So4oOqopWw1z84OImJw%2b7DAve5cc%3d
1 шт
23
COVER, BOTTOM
826000C5
code_image=http://www.elcats.ru/Codes.ashx?Key=k%2bMM15iE5xcdJ5mhj%2bRY2Lml8JJuXkVuzCdt0xg1prk%3d
1 шт
27
SLEEVE FROM TRANSMISSION NO. 55 15971 FROM CHASSIS NO. 55 06785
6D6000C5
code_image=http://www.elcats.ru/Codes.ashx?Key=eA9zDQzD2cj5SLB7Aw4ilNLeHL4uuwe7XKXc%2bEPfnJY%3d
1 шт
28
SEAL HOLDER X FOR SLEEVE AT CLUTCH HOUSING FROM TRANSMISSION NO. 55 15971 FROM CHASSIS NO. 55 06785
775000C5
code_image=http://www.elcats.ru/Codes.ashx?Key=eA9zDQzD2cj5SLB7Aw4ilMBDmfBuKHMGEi9wIjlzCDE%3d
1 шт
28
SEAL HOLDER X FOR SLEEVE AT CLUTCH HOUSING FROM TRANSMISSION NO. 55 15971 FROM CHASSIS NO. 55 06785
BF2000C5
code_image=http://www.elcats.ru/Codes.ashx?Key=eA9zDQzD2cj5SLB7Aw4ilAR7SAZSpP%2bP9yuSOENX6gg%3d
1 шт
3
SPRING
BB900008
code_image=http://www.elcats.ru/Codes.ashx?Key=utM%2f0s0o3Phtdi2tWCmJdyTfrCgZdB7D9DUOFJyKu6U%3d
3 шт
31
VENTING SCREW FROM TRANSMISSION NO. 55 15971 FROM CHASSIS NO. 55 06785
7BD000C5
code_image=http://www.elcats.ru/Codes.ashx?Key=k%2bMM15iE5xcdJ5mhj%2bRY2DJwFCRKL9D3jo35P0wXvN8%3d
1 шт
4
CLUTCH PRESSURE PLATE
D9000008
code_image=http://www.elcats.ru/Codes.ashx?Key=utM%2f0s0o3Phtdi2tWCmJdxP0jd%2fbSjjBhhcjSPV%2fOyM%3d
1 шт
44
CLUTCH RELEASE BEARING WITH RELEASE BODY
DDE000C5
code_image=http://www.elcats.ru/Codes.ashx?Key=ojCObQlnuMsmMC6So4oOqoRR8WSYRg8snFYbblurkfA%3d
1 шт
45
RELEASE BODY OPTIONAL
6FA000C8
code_image=http://www.elcats.ru/Codes.ashx?Key=2c0345KTRyyd7cXsmI9yU8MXwXeWjQ%2b7QVSxwwyYsRc%3d
1 шт
45
RELEASE BODY OPTIONAL
706000C8
code_image=http://www.elcats.ru/Codes.ashx?Key=2c0345KTRyyd7cXsmI9yUy%2b9yEdre%2f1ryWujCnNep1c%3d
1 шт
45
ADJUSTING RING UP TO TRANSMISSION NO. 02477/53 (PROVISIONAL ONLY, TO AVOID ANY BRUSHING AGAINST INNER RING OF BEARING)
9F1000C5
code_image=http://www.elcats.ru/Codes.ashx?Key=eA9zDQzD2cj5SLB7Aw4ilEPF1RwjJGemxR6wSYqHEmo%3d
1 шт
46
PRESSURE SPRING FOR RELEASE BEARING AT TRANSMISSION COVER, FRONT
4A300139
code_image=http://www.elcats.ru/Codes.ashx?Key=D9AAg63CbEh9wVxAXyi%2f0ucdSbPrCQNls9Z%2bd5bWcIs%3d
1 шт
47
SPRING RETAINER FOR RELEASE BEARING AT TRANSMISSION COVER, FRONT
5F700138
code_image=http://www.elcats.ru/Codes.ashx?Key=a4ZPTOZ%2bbSgkr8BvadeANP1Dnj6XWvzQctc7HH7fUfw%3d
1 шт
48
SNAP RING FOR RELEASE BEARING AT TRANSMISSION COVER, FRONT
37D00139
code_image=http://www.elcats.ru/Codes.ashx?Key=dD593iIvYvZBQB%2b9GyHYR%2byrGgXw8MPVMOEn52yxpBs%3d
1 шт
49
RELEASE FORK
0CF000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=t%2fWLxNnp6O3LTDrEoRDpqImVcCE0xYQtGrcdQYyCpOE%3d
1 шт
5
SPRING RETAINER
B28000EA
code_image=http://www.elcats.ru/Codes.ashx?Key=Pjx4jHzKmS5Et7bpVxeH16sAY4rLztjjchurW4aOeNU%3d
9 шт
6
CLUTCH SPRING
A1500008
code_image=http://www.elcats.ru/Codes.ashx?Key=utM%2f0s0o3Phtdi2tWCmJdyun5RG6jgfn9oZLpGCLnPQ%3d
9 шт
7
PRESSURE-SPRING SLEEVE
0980000A
code_image=http://www.elcats.ru/Codes.ashx?Key=utM%2f0s0o3Phtdi2tWCmJd92ZiKLc5eN8%2fAenQkwIvYE%3d
9 шт
8
BALL PIN
B6200008
code_image=http://www.elcats.ru/Codes.ashx?Key=utM%2f0s0o3Phtdi2tWCmJd1t%2bM0d0i0oqJWObsI%2bTyME%3d
3 шт
9
LEVER
87000009
code_image=http://www.elcats.ru/Codes.ashx?Key=utM%2f0s0o3Phtdi2tWCmJd6jtHyQqmBMMRsWGCF1tvvQ%3d
3 шт
