FRAME FLOOR / FRAME FLOOR — Mercedes-Benz TYP 180 120.002: схема и номера деталей | Глав Авто
Запчасти
/

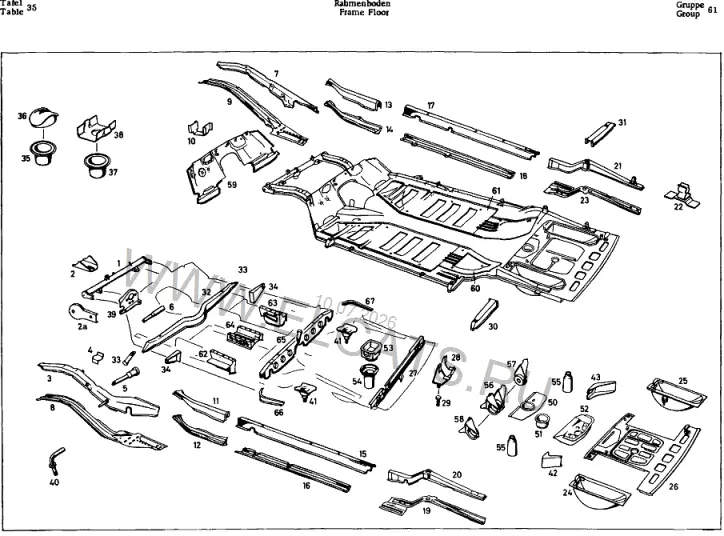

FRAME FLOOR / FRAME FLOOR
Mercedes-Benz · TYP 180 · 120.002
FRAME FLOOR / FRAME FLOOR
FRAME FLOOR [Z08]
Детали узла
7
0
REPLACED BY X 10 120 610 02 17 TOGETHER WITH 2 FIXING SCREW 120 500 01 85 2 SPACER TUBE 120 504 01 53 2 WASHER V 11,5 DIN 440 1 BRACKE
1BC00099
code_image=http://www.elcats.ru/Codes.ashx?Key=Kckog3%2fDK42QzH2m44ftPL%2bKqpRjGre4zPh2X7bngZg%3d
0
REPLACED BY X 10 120 610 03 17 TOGETHER WITH 2 FIXING SCREW 120 500 01 85 2 SPACER TUBE 120 504 01 53 2 WASHER V 11.5 DIN 440 1 BRACKE
BF500098
code_image=http://www.elcats.ru/Codes.ashx?Key=Kckog3%2fDK42QzH2m44ftPIPiI6E0T0NCi1t5r19maEo%3d
0
REPLACED BY 10 121 612 01 43 TOGETHER WITH 1 BRACKET, RIGHT 10 121 612 02 43 2 FIXING SCREW 120 500 01 85 2 SPACER TUBE 120 504 01 5
4F8000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=Mv136N8CLpiQh7Ewat1WJrJml94GazM0ZPlPyarj1MQ%3d
0
REPLACED BY 10 121 612 01 43 TOGETHER WITH 1 BRACKET, RIGHT 10 121 612 02 43 2 FIXING SCREW 120 500 01 85 2 SPACER TUBE 120 504 01 5
678000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=2KyT2JtsVQR7YZamGFx7TISh85bq8TgZkjvZprZ0uLQ%3d
0
TUBE, DIA. X 35-MM REPLACED BY 120 293 05 17 REWORK BORE IN FORK MEMBER HALF FROM 36-MM DIA. TO 39-MM DIA. FOR PEDAL MOUNTING UP TO C
05D000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=jBy7CJsvZyw0SEzz%2b%2fpAd5ApXpcTpdGVwUsIOjUyt34%3d
0
MOUNTING REPLACED BY 120 330 09 61 TOGETHER WITH 2 SPACER SLEEVE 120 333 04 53 2 WASHER 120 330 01 55 1 LOCKING PLATE 120 994 00 13 2 HEX.
27F000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=82RfyLGzkcPAABC%2bcg%2bHyRd4D7xiihbVh%2bz%2fSVhPnyY%3d
0
FLOOR, REAR FOR SINGLE-JOINT REAR AXLE UP TO CHASSIS NO. 55 12433 EXCEPT FOR 55 11783, 12143, 12215; WHEN MOUNTING, THE REAR FLOOR H Код заменен на
6C100098
code_image=http://www.elcats.ru/Codes.ashx?Key=Kckog3%2fDK42QzH2m44ftPC35zj%2fYqecl6XFsM2xNeOY%3d
