ENGINE COOLING / ENGINE COOLING — Mercedes-Benz TYP 180 120.010: схема и номера деталей | Глав Авто
Запчасти
/
ENGINE COOLING / ENGINE COOLING
Mercedes-Benz · TYP 180 · 120.010
ENGINE COOLING / ENGINE COOLING

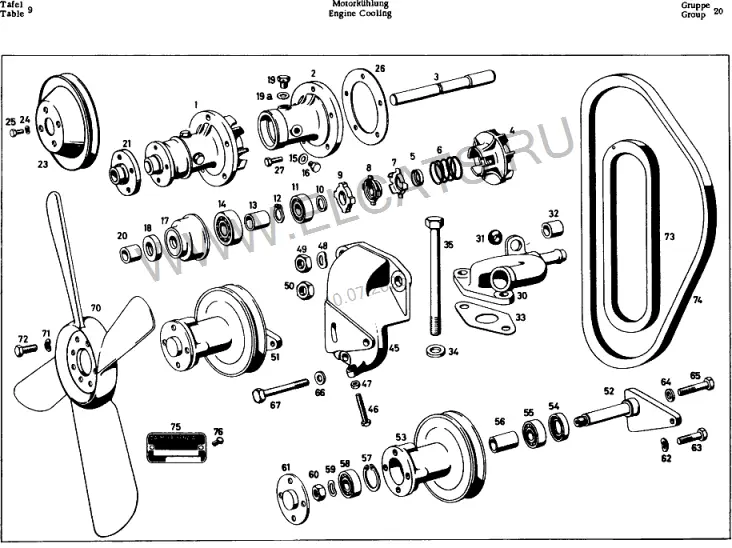

ENGINE COOLING [Z08]
Детали узла
49
0
WATER PUMP WITH PULLEY REPLACED BY 181 200 12 01 TOGETHER WITH 1 PULLEY 181 205 04 10 4 HEX.-HD. SCREW M 8X12 DIN 933-8 G 4 SPRING
35B00137
code_image=http://www.elcats.ru/Codes.ashx?Key=WGHD1BnHqjCP3u%2bWddKRPvt36m2qvMn8v8bGcio4eDk%3d
1
WATER PUMP WITHOUT PULLEY PULLEY SCREWED TO HUB FROM ENGINE NO. 55 08229
4D200137
code_image=http://www.elcats.ru/Codes.ashx?Key=WGHD1BnHqjCP3u%2bWddKRPlF%2f23e6rQDlfS7lx58c3XM%3d
1 шт
10
SEALING RING FROM ENGINE NO. 45 14836
D13000EB
code_image=http://www.elcats.ru/Codes.ashx?Key=8pr2LClwwxwppOe6bW8K0j4YN7oQtRD9mLiT5WJ3Ga8%3d
1 шт
10
SPACER SLEEVE UP TO ENGINE NO. 45 14835
64C003DD
code_image=http://www.elcats.ru/Codes.ashx?Key=B0CN1s2dPPscGWFzkyNDYr83RoA6jXiBgvCHDwMV13g%3d
1 шт
13
LOCKING PLATE FOR PULLEY AT WATER PUMP SHAFT UP TO ENGINE NO. 45 14835
5B4000EB
code_image=http://www.elcats.ru/Codes.ashx?Key=AmMMqAEmUVTHLxRxh6C%2f2xsCX6ifBY%2fEOH5jNooB%2bNM%3d
1 шт
13
SPACER SLEEVE FROM ENGINE NO. 45 14836
38E00137
code_image=http://www.elcats.ru/Codes.ashx?Key=r7laaSX9fTwpYMJ05Izr0EzxBtO%2bWFGFsbnvWY1NNt0%3d
1 шт
13
GASKET UP TO ENGINE NO. 45 14835
5EB000EA
code_image=http://www.elcats.ru/Codes.ashx?Key=E296RoOf5cNw07boK%2b3ruC%2bZBfuJOSxeY6UN4vPR0JY%3d
1 шт
13
THREADED RING UP TO ENGINE NO. 45 14835
059000EB
code_image=http://www.elcats.ru/Codes.ashx?Key=E296RoOf5cNw07boK%2b3ruLvmzV%2fJ7K6C9c7G51WBs5w%3d
1 шт
17
SEALING RING HOLDER FROM ENGINE NO. 45 14836
F6400137
code_image=http://www.elcats.ru/Codes.ashx?Key=zFGNzlaaZjzpovcALaDOT9hP5LPmXLl6uGVbwdWeZ04%3d
1 шт
18
SEALING RING IN SEALING RING HOLDER FROM ENGINE NO. 45 14836
E0700138
code_image=http://www.elcats.ru/Codes.ashx?Key=e47LwZcYqZbuZY%2fk1NPA%2b2NoBSBkJ2BjfCrhI4s84Dw%3d
1 шт
19
SCREW PLUG AT BEARING HOUSING FOR VENTILATION FROM ENGINE NO. 45 14836
5F300139
code_image=http://www.elcats.ru/Codes.ashx?Key=d9q7kgQQ4v99B1NR%2bo4W67noVqW6zEOT3uQ%2fhZKK%2f0g%3d
1 шт
19
INTERMEDIATE RING FOR BALL BEARING UP TO ENGINE NO. 45 14835
F93000F3
code_image=http://www.elcats.ru/Codes.ashx?Key=ofBTI5rteFJ6PhoA8MsxJUek2sxOpw%2bBsleI7CPPzhQ%3d
1 шт
2
BEARING HOUSING
890003DF
code_image=http://www.elcats.ru/Codes.ashx?Key=B0CN1s2dPPscGWFzkyNDYrP8KvcVNNDCJQ4rvpeiXFs%3d
1 шт
2
GASKET UP TO ENGINE NO. 45 14835
4DE00137
code_image=http://www.elcats.ru/Codes.ashx?Key=WGHD1BnHqjCP3u%2bWddKRPle3KhJTNLM31gxnb%2f2nN9A%3d
1 шт
2
WATER PUMP SHAFT UP TO ENGINE NO. 45 14835
247003DD
code_image=http://www.elcats.ru/Codes.ashx?Key=gQLOLEGdXfNMk4%2fRNF%2bv9n7rIcK4hGtVNeriozrQHBo%3d
1 шт
20
REPLACED BY 181 205 04 10 TOGETHER WITH 1 HUB 121 202 00 14 4 HEX.-HD. SCREW M 8X12 DIN 933-8 G 4 SPRING WASHER B 8 DIN 137 FROM ENG
F9B003DC
code_image=http://www.elcats.ru/Codes.ashx?Key=gQLOLEGdXfNMk4%2fRNF%2bv9sRJN4kdQAHfYmCA5Keq%2bTA%3d
20
REPLACED BY 181 205 04 10 TOGETHER WITH 1 HUB 636 202 01 14 4 HEX.-HD. SCREW M 8X12 DIN 933-8 G 4 SPRING WASHER B 8 DIN 137 UP TO EN
88A003DF
code_image=http://www.elcats.ru/Codes.ashx?Key=gQLOLEGdXfNMk4%2fRNF%2bv9rZFPwyBrDzeVmfJl1IJ97A%3d
20
REPLACED BY 181 205 04 10 TOGETHER WITH 1 HUB 636 202 01 14 4 HEX.-HD. SCREW M 8X12 DIN 933-8 G 4 SPRING WASHER B 8 DIN 137 UP TO EN
F5C003DC
code_image=http://www.elcats.ru/Codes.ashx?Key=gQLOLEGdXfNMk4%2fRNF%2bv9sPW%2bP%2fX3HnLhp931Vnqt%2fM%3d
20
INTERMEDIATE RING FOR BALL BEARING FROM ENGINE NO. 45 14836
6E200137
code_image=http://www.elcats.ru/Codes.ashx?Key=r7laaSX9fTwpYMJ05Izr0D6Xnc0ncR5OraGPfHTNAZ0%3d
1 шт
21
HUB FOR PULLEY APPLICABLE ONLY IN CASE OF REPLACEMENT FOR PULLEY 636 200 07 05 BY PULLEY 181 205 04 10 UP TO ENGINE NO. 45 1
F65003DC
code_image=http://www.elcats.ru/Codes.ashx?Key=acA0ycJAePJpPPjJqOKy%2bzrps6fn%2bgB1DKDe20d%2bBJw%3d
1 шт
21
HUB FOR PULLEY FROM ENGINE NO. 55 08229
AB4000C8
code_image=http://www.elcats.ru/Codes.ashx?Key=fSZa3LOBk0fhvZDGlHQBZXmaN3D%2b%2f68N1UEBDxXemxg%3d
1 шт
23
PULLEY FOR WATER PUMP, SCREWED TO HUB FROM ENGINE NO. 55 08229
4EA00137
code_image=http://www.elcats.ru/Codes.ashx?Key=WWCM%2fuWrVt6RfCLMF3tFUHKi%2fI3tSDcVe8xuxJbG8Kw%3d
1 шт
26
SEALING RING BETWEEN WATER PUMP AND CYLINDER HEAD
D59000F3
code_image=http://www.elcats.ru/Codes.ashx?Key=JVWVtQ5MHgI2UZBZXavo7LR8hmUdlpmd0lg9HKR5Q5c%3d
1 шт
3
WATER PUMP SHAFT FROM ENGINE NO. 45 14836
E4F00138
code_image=http://www.elcats.ru/Codes.ashx?Key=r7laaSX9fTwpYMJ05Izr0KSk0VOKwXd4gD6zTadVhR8%3d
1 шт
30
COOLING WATER
6DC00137
code_image=http://www.elcats.ru/Codes.ashx?Key=WGHD1BnHqjCP3u%2bWddKRPlYIRJO18ljglxUgcULlWEU%3d
1 шт
31
GROMMET FOR BRACKET OF CEBLE GUIDE
F390004B
code_image=http://www.elcats.ru/Codes.ashx?Key=c3fAV1yF5G1OIQb1jfh8J3o5bsSp1Rylo5ekWw9kk5E%3d
1 шт
32
GROMMET TO LOCK COOLING-WATER DISCHARGE NIPPLE AND PIPE ELBOW FOR CARS WTHOUT HEATING SYSTEM
9E5000C5
code_image=http://www.elcats.ru/Codes.ashx?Key=qeVWBXFIMGicB%2bTfZiN6psfrx4%2fm9NGu2ceooTT%2fGwc%3d
2 шт
33
GASKET TO FIX COOLING WATER DISCHARGE NIPPLE TO CYLINDER HEAD
963000EA
code_image=http://www.elcats.ru/Codes.ashx?Key=MIn1KDtvqzq1wJcgIDfyrBMFejNJaD7%2bwCLhUvhDQ5I%3d
1 шт
35
HEX.-HD. SCREW M 12X140 TO FIX COOLING WATER DISCHARGE NIPPLE TO CYLINDER HEAD
FC5000EB
code_image=http://www.elcats.ru/Codes.ashx?Key=O5oXOLwqGqjZLMRqj5A9BfOjBf%2blM4gmMeg%2fb15kzVg%3d
2 шт
4
IMPELLER FROM ENGINE NO. 45 14836
35E00137
code_image=http://www.elcats.ru/Codes.ashx?Key=r7laaSX9fTwpYMJ05Izr0PHMnDuOjvhzrABVX6sPNeI%3d
1 шт
4
IMPELLER UP TO ENGINE NO. 45 14835
05D000EA
code_image=http://www.elcats.ru/Codes.ashx?Key=E296RoOf5cNw07boK%2b3ruOAmNi0CuNheW7kdltzQ%2fCc%3d
1 шт
4
WATER PUMP PACKING UP TO ENGINE NO. 45 14835
D7900007
code_image=http://www.elcats.ru/Codes.ashx?Key=QDbKfpTMxCpp7ODldslFdx7rp%2fpDiH02ML4cTvnUz6k%3d
1 шт
45
SUPPORT WITH THREADED BUSHING OPTIONAL FOR FAN MOUNTING BRACKET
38B00137
code_image=http://www.elcats.ru/Codes.ashx?Key=WGHD1BnHqjCP3u%2bWddKRPkCfwO6rGGTWwanr4MLoamk%3d
1 шт
45
SUPPORT WITH THREADED BUSHING OPTIONAL FOR FAN MOUNTING BRACKET
4CF00137
code_image=http://www.elcats.ru/Codes.ashx?Key=WGHD1BnHqjCP3u%2bWddKRPhwrxctloOjceuSyvEWJ9ho%3d
1 шт
5
COVER FROM ENGINE NO. 45 14836
FC0002A9
code_image=http://www.elcats.ru/Codes.ashx?Key=T3NeCBSYFeSLv%2bvUya6NS0R%2fEi2IM4cao%2bSEwxM6tUY%3d
1 шт
50
HEX.NUT FOR SUPPORT OF FAN MOUNTING AT CYLINDER CRANKCASE
CEC000EB
code_image=http://www.elcats.ru/Codes.ashx?Key=O5oXOLwqGqjZLMRqj5A9BXrDiJZCfpqPm6cybX4Iccs%3d
1 шт
51
FAN MOUNTING BRACKET WITH PULLEY
02800137
code_image=http://www.elcats.ru/Codes.ashx?Key=WGHD1BnHqjCP3u%2bWddKRPhKRNRW0OQdUB7KCyvlLTNU%3d
1 шт
52
FAN MOUNTING BRACKET
5A400137
code_image=http://www.elcats.ru/Codes.ashx?Key=WWCM%2fuWrVt6RfCLMF3tFUMRZ%2bU2M%2flIaNAk8FvD3Zd8%3d
1 шт
53
PULLEY FOR FAN
37300137
code_image=http://www.elcats.ru/Codes.ashx?Key=WGHD1BnHqjCP3u%2bWddKRPqV%2fnTouDKTIwolXOMzxlyU%3d
1 шт
54
OIL SEAL
CAE0004B
code_image=http://www.elcats.ru/Codes.ashx?Key=c3fAV1yF5G1OIQb1jfh8J%2bxr3A2JJOM%2fmPqCGGuT%2b04%3d
1 шт
56
SPACER TUBE
43200138
code_image=http://www.elcats.ru/Codes.ashx?Key=ZqDDql%2bnFZ9IO3TKR7iJuj2eb0a%2f2vnCXcntFdJf5b4%3d
1 шт
6
PRESSURE SPRING FROM ENGINE NO. 45 14836
91800138
code_image=http://www.elcats.ru/Codes.ashx?Key=Q2qYZgxaFoOSeoLVgqNTtT3A1Yk%2fGtNTJh7y%2fLpzHdk%3d
1 шт
61
CENTERING RING FOR FAN
E5200138
code_image=http://www.elcats.ru/Codes.ashx?Key=WWCM%2fuWrVt6RfCLMF3tFUDXZvU0EAE%2b7fh1zExztqag%3d
1 шт
64
REPLACED BY 181 205 08 06 TOGETHER WITH 4 HEX.-HD. SCREW M 8X20 DIN 933-8 G EXPORT
56800137
code_image=http://www.elcats.ru/Codes.ashx?Key=WGHD1BnHqjCP3u%2bWddKRPk6xQh1w8w43dvhhukGyVnY%3d
64
WASHER FOR FAN MOUNTING BRACKET AT SUPPORT
72D00137
code_image=http://www.elcats.ru/Codes.ashx?Key=4JGNBdLdN9elETV77DuMmiuOeNhBgW9B4A9EcTV2z8s%3d
1 шт
7
SLIP-RING CAGE FROM ENGINE NO. 45 14836
047002AA
code_image=http://www.elcats.ru/Codes.ashx?Key=T3NeCBSYFeSLv%2bvUya6NS8xdxWsdKfIgxQUZe5lN0VA%3d
1 шт
70
FAN
4ED00137
code_image=http://www.elcats.ru/Codes.ashx?Key=WWCM%2fuWrVt6RfCLMF3tFUHliocz0Hlu1vMaezi5bwDA%3d
1 шт
8
SEALING RING FROM ENGINE NO. 45 14836
F24002A9
code_image=http://www.elcats.ru/Codes.ashx?Key=T3NeCBSYFeSLv%2bvUya6NSxhDluDhXUdwo3ietPHf41A%3d
1 шт
9
SLIP RING FROM ENGINE NO. 45 14836
164002AA
code_image=http://www.elcats.ru/Codes.ashx?Key=T3NeCBSYFeSLv%2bvUya6NSxk3dzE4wvgHQ2ENex5xtxg%3d
1 шт
