SUCTION TUBE AND EXHAUST MANIFOLD / SUCTION TUBE AND EXHAUST MANIFOLD — Mercedes-Benz TYP 180 120.011: схема и номера деталей | Глав Авто
Запчасти
/
SUCTION TUBE AND EXHAUST MANIFOLD / SUCTION TUBE AND EXHAUST MANIFOLD
Mercedes-Benz · TYP 180 · 120.011
SUCTION TUBE AND EXHAUST MANIFOLD / SUCTION TUBE AND EXHAUST MANIFOLD

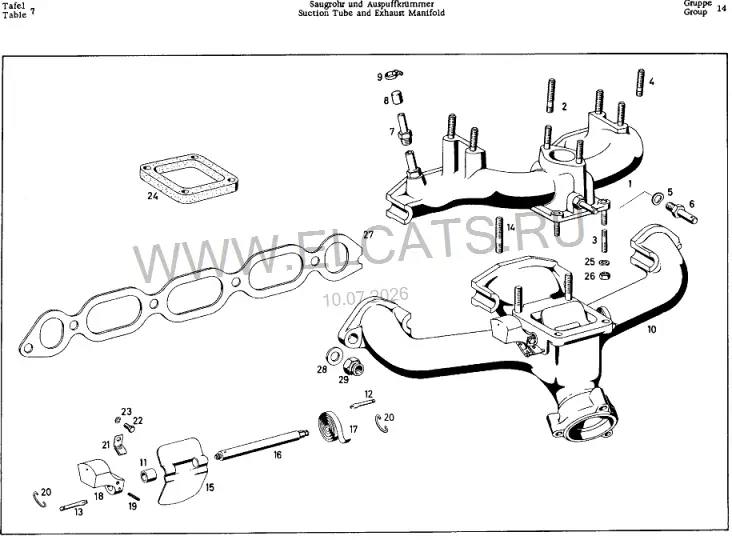

SUCTION TUBE AND EXHAUST MANIFOLD [Z09]
Детали узла
19
0
SUCTION TUBE WITH STUD BOLT Код заменен на
C3B000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=qyPKd4FyAs3ZXYSympTIQ2j1CE4YRKdFCzyfh3nu38w%3d
1
SUCTION TUBE WITH STUD BOLT
9C2000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=qyPKd4FyAs3ZXYSympTIQ6eBwVJjI15d64PHVE206Zg%3d
1 шт
10
EXHAUST MANIFOLD WITH HEATING FLAP AND TIGHTENING SPRING
C32000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=qyPKd4FyAs3ZXYSympTIQ7Oq7qUDUASw9ZTwzhc60qg%3d
1 шт
11
BUSHING FOR HEATING FLAP SHAFT
31300137
code_image=http://www.elcats.ru/Codes.ashx?Key=svNiKMSPJQeKbfY8fNjaA%2f64%2boWbH3%2bAoLvRqf8R4r8%3d
2 шт
12
GROOVED PIN
DA100048
code_image=http://www.elcats.ru/Codes.ashx?Key=NRhYyxqNsV1y%2f9s0T6jgq6PyfhacWMjADrclSNVHnvo%3d
1 шт
13
GROOVED PIN
28200048
code_image=http://www.elcats.ru/Codes.ashx?Key=NRhYyxqNsV1y%2f9s0T6jgqxuFFzBBOd4A%2beyNhE%2fTSXo%3d
1 шт
15
HEATING FLAP FOR EXHAUST MANIFOLD
9B2000C5
code_image=http://www.elcats.ru/Codes.ashx?Key=2iet5tG7h7FmOJ10XvxP0R6JYr3DeVaLDacUY%2b5DSIg%3d
1 шт
16
HEATING FLAP SHAFT
29D00138
code_image=http://www.elcats.ru/Codes.ashx?Key=acxfRrqA0R%2bnxu5FpnNnZPOA1nuCNuDbrY%2f0EXEtAsI%3d
1 шт
17
THERMO SPIRAL
18B000F4
code_image=http://www.elcats.ru/Codes.ashx?Key=D2sw%2fCFCVu8g9g927nFn5l9Ocspad7VrieA0UtLxzUY%3d
1 шт
18
BALANCING WEIGHT FOR HEATING FLAP
3C7000C8
code_image=http://www.elcats.ru/Codes.ashx?Key=Ef4MIdBDG9WPkwzlCqAk5L6xPjqQPmg4Ai1cgmaiUJw%3d
1 шт
20
TIGHTENING SPRING
7D500137
code_image=http://www.elcats.ru/Codes.ashx?Key=qkeb6y27apBaU1F4iCU8I1k7iEGXJfm3w6qPT%2f4vnmY%3d
2 шт
21
DAMPING SPRING FOR HEATING FLAP
974000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=qyPKd4FyAs3ZXYSympTIQyNYEe3FavQT1zWjX0eSaJE%3d
1 шт
24
INSULATING FLANGE FOR EXHAUST MANIFOLD AT SUCTION TUBE
433000C8
code_image=http://www.elcats.ru/Codes.ashx?Key=daaRGCauHVEUODp8TfXvHiBfpCJQjG9Oxjqrj62dPJk%3d
1 шт
26
HEX. NUT FOR EXHAUST MANIFOLD AT SUCTION TUBE
61A00046
code_image=http://www.elcats.ru/Codes.ashx?Key=diPViVXk5A3NiVu2GqV2krTM35zEhpkmwSJ%2f7DzZ36E%3d
4 шт
27
GASKET FOR SUCTION TUBE AND EXHAUST MANIFOLD AT CYLINDER HEAD
9D1000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=daaRGCauHVEUODp8TfXvHsLR7qCyf%2bOqkq4TpuMYyxo%3d
1 шт
4
STUD BOLT FOR AIR FILTER MOUNTING
354000ED
code_image=http://www.elcats.ru/Codes.ashx?Key=O5oXOLwqGqjZLMRqj5A9BVoWfj1oLNL6GiciRk1bUVw%3d
4 шт
6
PIN FOR REGULATING LEVER AT SUCTION TUBE
ABB00139
code_image=http://www.elcats.ru/Codes.ashx?Key=RKCkaIYMcSHe972TmkPkl%2fkliHN%2bD80wX9tokrFNwGE%3d
1 шт
7
SCREWED NIPPLE FOR CONNECTION OF ATE BOOSTER BRAKE
67100136
code_image=http://www.elcats.ru/Codes.ashx?Key=YbrKkJKN8yuIA4rfDJJwmffN6D8W6K9TAZsewL%2fAsvQ%3d
1 шт
8
RUBBER CAP FOR LOCKING OF SCREWED NIPPLE ONLY VALID IN CASE OF EQUIPMENT WITHOUT ATE BOOSTER BRAKE
08A000C9
code_image=http://www.elcats.ru/Codes.ashx?Key=myO87rfZhEHJpmCxWL6jipQ9muwUxltVvj1Y2r6fP%2fw%3d
1 шт
