OIL PUMP (121.923 TYP M 121 B.IV, .VIII BM 121.923, .927) / OIL PUMP, OIL FILTER AND OIL PRESSURE RELIEF VALVE — Mercedes-Benz TYP 180 120.011: схема и номера деталей | Глав Авто
Запчасти
/
OIL PUMP (121.923 TYP M 121 B.IV, .VIII BM 121.923, .927) / OIL PUMP, OIL FILTER AND OIL PRESSURE RELIEF VALVE
Mercedes-Benz · TYP 180 · 120.011
OIL PUMP (121.923 TYP M 121 B.IV, .VIII BM 121.923, .927) / OIL PUMP, OIL FILTER AND OIL PRESSURE RELIEF VALVE

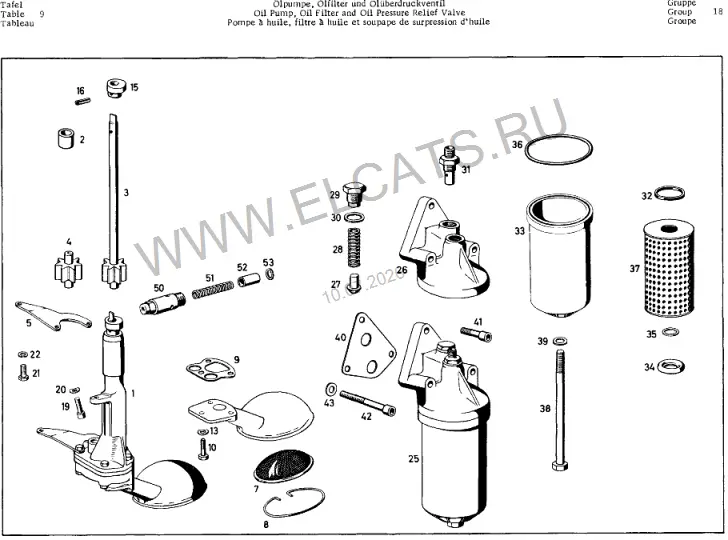

OIL PUMP (121.923 TYP M 121 B.IV, .VIII BM 121.923, .927) [Z11]
Детали узла
53
1
OIL PUMP
A2E000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=BedVNI2upkMruv%2bqftftXC1O0%2fq2fiS999UzFCnt7bk%3d
1 шт
10
HEX. HEAD SCREW M 6X22 DIN 931-8 G LOWER PART OF OIL PUMP HOUSING AND SUCTION BASKET TO UPPER PART
F4B00498
code_image=http://www.elcats.ru/Codes.ashx?Key=yaWPldD8x834Mne%2bjVmwymDpplG5VmEgJ7vHOwb6WiQ%3d
1 шт
10
HEX. HEAD SCREW M 6X35 DIN 931-8 G LOWER PART OF OIL PUMP HOUSING AND SUCTION BASKET TO UPPER PART
DFB00498
code_image=http://www.elcats.ru/Codes.ashx?Key=yaWPldD8x834Mne%2bjVmwykuB%2fdv0AqApxCHBKz9r7GA%3d
2 шт
10
HEX. HEAD SCREW M 6X55 DIN 931-8 G LOWER PART OF OIL PUMP HOUSING AND SUCTION BASKET TO UPPER PART
F3300498
code_image=http://www.elcats.ru/Codes.ashx?Key=yaWPldD8x834Mne%2bjVmwyoe2%2bHNvF7eKuI%2bEzCZ%2b5Uk%3d
2 шт
13
HEX. NUT M 6 DIN 934-5 S LOWER PART OF OIL PUMP HOUSING AND SUCTION BASKET TO UPPER PART
7920049B
code_image=http://www.elcats.ru/Codes.ashx?Key=DTISMADQJRsOE2XgRq%2f1EteJnajCAYDpAVNJCSIMuko%3d
4 шт
13
SPRING WASHER B 6 DIN 137 LOWER PART OF OIL PUMP HOUSING AND SUCTION BASKET TO UPPER PART
BD400497
code_image=http://www.elcats.ru/Codes.ashx?Key=nWztNMFQX9L%2b9iv0YGJjcVE2O5JVhtHcL2ikVPDbpDg%3d
5 шт
15
CAM
B6A00135
code_image=http://www.elcats.ru/Codes.ashx?Key=VB8%2f0smdlUVvIN5rMvi5mYX08%2bUQQGVnKI4mtye0w%2bw%3d
1 шт
16
DOWEL PIN
C8D0049E
code_image=http://www.elcats.ru/Codes.ashx?Key=3YUmd9Jb4H4XVO8e8fii8HhYD7g3Z%2bKViH5qJhmlMAo%3d
1 шт
19
HEX. SOCKET SCREW M 8X18 DIN 912-8 G OIL PUMP TO CYLINDER CRANKCASE
66F00498
code_image=http://www.elcats.ru/Codes.ashx?Key=8Q%2fPBAZiQaInSJ0AdLbWnofEbae6mcUGBDnFstbbDL8%3d
1 шт
2
BUSHING
BFD00135
code_image=http://www.elcats.ru/Codes.ashx?Key=h%2bFz88KCi1OZTN1A182O6q%2bnacJPt75Zs6O3vJ84HhY%3d
1 шт
20
SPRING WASHER B 8 DIN 137 OIL PUMP TO CYLINDER CRANKCASE
9B300496
code_image=http://www.elcats.ru/Codes.ashx?Key=FCLSbecmavsxYwzhM4fWh35dHZxNG16tfkncG%2bEpdaA%3d
1 шт
21
HEX. HEAD SCREW M 8X15 DIN 933-8 G OIL PUMP TO CYLINDER CRANKCASE
AE500499
code_image=http://www.elcats.ru/Codes.ashx?Key=f8qgQ985%2fCXmbOS9yN4PRw5etQkGYmgvJ%2fA%2fVa1Rb0U%3d
1 шт
22
SPRING WASHER B 8 DIN 127 OIL PUMP TO CYLINDER CRANKCASE
16500498
code_image=http://www.elcats.ru/Codes.ashx?Key=V1t2Wpz7H%2fYhXsaF6tdfugauDHNpcYTV32SRKYS0G7M%3d
1 шт
22
REPLACED BY 000 184 96 01 AND 000 184 97 01, RESP. TOGETHER WITH 2 HEX. SOCKET SCREW 000912 008037
26D00009
Комментарии: [026] | code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5mfXN0kjG%2bcBOEvjDRCSibg%3d
22
REPLACED BY 000 184 96 01 AND 000 184 97 01, RESP. TOGETHER WITH 2 HEX. SOCKET SCREW 000912 008037
7CD00007
Комментарии: [026] | code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5mfXPt4jyEHK%2f11atTlCHmY%3d
25
OIL FILTER
3B900007
Комментарии: [026] | code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5n71n%2b2FYcZBvCTXiIwRNRc%3d
1 шт
25
OIL FILTER BY MESSRS. KNECHT OPTIONAL
A4F00007
Комментарии: [027] | code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5rwWO6r2QUyHot3mkmLP6uo%3d
1 шт
25
OIL FILTER BY MESSRS. MANN & HUMMEL OPTIONAL
B4B00007
Комментарии: [027] | code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5qk8anb2P%2fHEVkmylBIZFA0%3d
1 шт
26
OIL FILTER
6A100007
Комментарии: [027] | code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5tbdRmY4aLQcVuENrstUCM0%3d
1 шт
27
VALVE CONE
3D300137
code_image=http://www.elcats.ru/Codes.ashx?Key=Mft1tjXqYYhWbsa6K%2f0eU23D9UxFnJmA5%2bJbV2IyiTA%3d
1 шт
28
SPRING
E7900138
code_image=http://www.elcats.ru/Codes.ashx?Key=qkeb6y27apBaU1F4iCU8I2J2m%2bLPka1ygVNiqYVtk1A%3d
1 шт
29
SCREW PLUG
3B600007
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5uLHpTEf6Qw0fvWFNb%2bmeEM%3d
1 шт
3
DRIVE SHAFT WITH GEAR
A2B000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=BedVNI2upkMruv%2bqftftXMjQhC5siVSfulalXGD%2bRjc%3d
1 шт
3
OIL PUMP SHAFT WITH GEAR Код заменен на
B6C000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=BedVNI2upkMruv%2bqftftXANNqaaV35IAksT03gtLQ80%3d
30
SEAL RING D 18X22 DIN 7604 A1
1550049F
code_image=http://www.elcats.ru/Codes.ashx?Key=bSnVUkH2y5iOv0CWRklelcvMjVwUd%2bhmxYFh16QcfOs%3d
1 шт
31
SCREW FITTING
4A500137
code_image=http://www.elcats.ru/Codes.ashx?Key=Mft1tjXqYYhWbsa6K%2f0eU4Z5rvm%2bqe8MeOkhg9ux7hY%3d
1 шт
32
SEAL RING
B3900007
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5mrHsauxXRJyQThDp5H8wpc%3d
1 шт
32
HOUSING-LOWER PART
B0C00007
Комментарии: [026] | code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5vIhycMmxZFEbS%2fXdzG87bk%3d
1 шт
33
HOUSING-LOWER PART
45D00008
Комментарии: [027] | code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5oFl8FqXycGRXgU2T%2frWax0%3d
1 шт
34
SEAL RING
7EB00007
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5hv%2fDo5A48gHBGaDlAbPJgY%3d
1 шт
35
SEAL RING
ABE00007
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5r7Ebf%2fyV98qEofAexG0u1w%3d
1 шт
36
SEAL RING BETWEEN UPPER AND LOWER PART
96100137
code_image=http://www.elcats.ru/Codes.ashx?Key=V%2bd3k3E9XZZM3vJGfCyyYmbpCwh%2biKk%2b9oxezFALPqE%3d
1 шт
37
FILTER ELEMENT FROM A READING OF 500 KILOMETERS ONWARDS SEE INSTRUCTION MANUAL
86F00007
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5sfpz8NyzY8hOYoHHgPmIdQ%3d
1 шт
37
FILTER ELEMENT UP TO A READING OF 500 KILOMETERS SEE INSTRUCTION MANUAL
79D00007
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5ojIaQXHMq%2bBzgqDkEPNGoQ%3d
1 шт
37
HEX. HEAD SCREW M 10X1X160 DIN 960-8 G OIL FILTER HOUSING, LOWER PART TO UPPER PART
9F40049A
Комментарии: [026] | code_image=http://www.elcats.ru/Codes.ashx?Key=YjNrC6zKzQscFCTeRp%2fqVkce%2bte60ECVcV2%2flekwlk4%3d
1 шт
38
HEX. HEAD SCREW M 10X1X150 DIN 960-8 G OIL FILTER HOUSING, LOWER PART TO UPPER PART
E560049A
Комментарии: [027] | code_image=http://www.elcats.ru/Codes.ashx?Key=YjNrC6zKzQscFCTeRp%2fqVnG8s3FKTdOJwJsA4tfC12g%3d
1 шт
39
SEAL RING D 10X16 DIN 7603 A1 OIL FILTER HOUSING, LOWER PART TO UPPER PART
FA80049E
code_image=http://www.elcats.ru/Codes.ashx?Key=jerTQPErW6mLJMlOKHUMr3rqfOZEdIr6Sd17dxBF88M%3d
1 шт
4
OIL PUMP SHAFT WITH GEAR
A40000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=BedVNI2upkMruv%2bqftftXM8refu3EQgGfJnhjeUu5Dc%3d
1 шт
40
GASKET OIL FILTER TO CYLINDER CRANKCASE
860000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=DiH4zJG3%2ffpWsOwFtwJ412v89YEiCzOWnZuxbWuu9%2fk%3d
1 шт
41
HEX. SOCKET SCREW M 8X30 DIN 912-8 G DBL 9451-21 OIL FILTER TO CYLINDER CRANKCASE
2EB00498
code_image=http://www.elcats.ru/Codes.ashx?Key=8Q%2fPBAZiQaInSJ0AdLbWntK6n3Y449%2bN5noAa%2f98rtk%3d
1 шт
41
HEX. SOCKET SCREW M 8X60 DIN 912-8 G OIL FILTER TO CYLINDER CRANKCASE
53700498
Комментарии: [026] | code_image=http://www.elcats.ru/Codes.ashx?Key=8Q%2fPBAZiQaInSJ0AdLbWnsvB6reQ2qGQ%2frDvC%2fK4Gno%3d
2 шт
42
HEX. SOCKET SCREW M 8X75 DIN 912-8 G DBL 8451-21 OIL FILTER TO CYLINDER CRANKCASE
7DD00498
Комментарии: [027] | code_image=http://www.elcats.ru/Codes.ashx?Key=8Q%2fPBAZiQaInSJ0AdLbWngJQ45wABiPPe%2bzgF8gHnic%3d
2 шт
43
WASHER 8,4 DIN 433 DBL 8451-11 OIL FILTER TO CYLINDER CRANKCASE
DAF00496
code_image=http://www.elcats.ru/Codes.ashx?Key=4PppdObN1E8gnQxOv6O%2bTlwpb3huZlTW8FAIeLDUqR4%3d
3 шт
5
BRACKET
AAB000C8
code_image=http://www.elcats.ru/Codes.ashx?Key=CXPIcuWShHi7jUCF4t1wk4IAnVE7rdNYLt9VUAa4PmI%3d
1 шт
5
SUCTION BASKET NO LONGER SUPPLIED
A58000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=BedVNI2upkMruv%2bqftftXM%2blybIpwd%2fBp0PpKetuz2o%3d
50
OIL PRESSURE RELIEF VALVE
A28000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=BedVNI2upkMruv%2bqftftXP8ZgffC31SYekdFVsF%2fJcQ%3d
1 шт
51
PISTON Код заменен на
275000F7
code_image=http://www.elcats.ru/Codes.ashx?Key=mcpQ8m3oX5xBq3%2bhoE6MTciFQtSFL6Z%2fmWL4bw9FnHU%3d
51
SPRING
67D00139
code_image=http://www.elcats.ru/Codes.ashx?Key=D9AAg63CbEh9wVxAXyi%2f0nFbUmGTgEjmlclFPBElGPE%3d
1 шт
52
PISTON
FCF002B2
code_image=http://www.elcats.ru/Codes.ashx?Key=9cDnqfsywytqX8rV%2bN46e9WNwNr8Q8Z61Ag8Dld6gFY%3d
1 шт
53
LOCK RING 12X1 DIN 472
52900497
code_image=http://www.elcats.ru/Codes.ashx?Key=v1PjMs7QWHy%2fvWX0VF10tOq53BLHQJ6cwhXnTa0tenI%3d
1 шт
7
STRAINER
6DC000C8
code_image=http://www.elcats.ru/Codes.ashx?Key=BedVNI2upkMruv%2bqftftXMv9Pa0JKeRqt%2bKhA6Wz%2bNI%3d
1 шт
8
SNAP RING
50B0004A
code_image=http://www.elcats.ru/Codes.ashx?Key=DedCnwS%2bHT39r4%2fE%2fPpNe4TfC8G0%2bjsp0uapRvbCu%2b4%3d
1 шт
9
GASKET LOWER PART OF OIL PUMP HOUSING AND SUCTION BASKET TO UPPER PART
B72000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=4Va3mASFoeKIzYj6LUvy0nin7KT5wFKprAlpmhAUb6A%3d
1 шт
