WHEELS AND TIRES / WHEELS AND TIRES — Mercedes-Benz TYP 180b 120.101: схема и номера деталей | Глав Авто
Запчасти
/

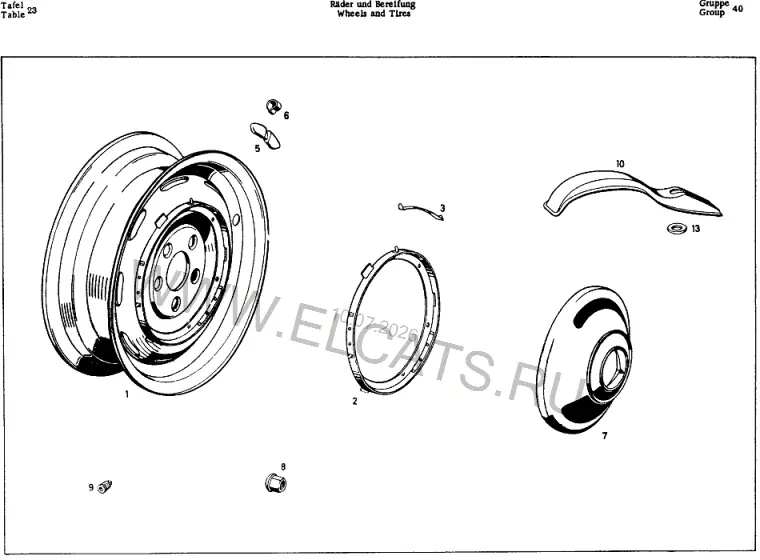

WHEELS AND TIRES / WHEELS AND TIRES
Mercedes-Benz · TYP 180b · 120.101
WHEELS AND TIRES / WHEELS AND TIRES
WHEELS AND TIRES [Z10]
Детали узла
52
0
DISC WHEEL WITH WELL-BASE RIM 4.5 K X 13 FOR TIRES 6.40-13 Код заменен на
54800136
code_image=http://www.elcats.ru/Codes.ashx?Key=bLBXMzAaohaJsLszHPf%2frccSX%2b7ixnE17BTM2WdP6rA%3d
1
DISC WHEEL WITH WELL-BASE RIM 4.5 K X 13 FOR TIRES 6.40-13
3C200136
code_image=http://www.elcats.ru/Codes.ashx?Key=bLBXMzAaohaJsLszHPf%2frTvXmb3c58KiP0hRDNHN%2f60%3d
5 шт
1
DISC WHEEL WITH WELL-BASE RIM 4.5 K X 15 FOR TIRES 6.40-15 Код заменен на
91C00137
code_image=http://www.elcats.ru/Codes.ashx?Key=AjZ5kHBs5HgtZQP%2bjK0bT7Auftt4%2f8D7oK5zRtcgd6o%3d
1
DISC WHEEL WITH WELL-BASE RIM 4.5 K X 15 FOR TIRES 6.40-15 EXPORT - SPECIAL REQUEST
AD200137
code_image=http://www.elcats.ru/Codes.ashx?Key=AjZ5kHBs5HgtZQP%2bjK0bT4qjChRdrv5YIg%2f5FRBko6o%3d
5 шт
10
CLAMP FOR SPARE WHEEL AT BRACKET
627000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=M5DJDtcdiu%2bbKs%2fmtZlIM2Wr9HamjTNMWOmflo4Qiwo%3d
1 шт
13
RIM - ORNAMENTAL RING FOR RIM K X 13 SPECIAL REQUEST
7E0000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=D%2f8p2ydOr5MTQm%2fmdgGmtxdmmPAStLgbVkiLdHH%2f4jg%3d
5 шт
13
RUBBER WASHER FOR SPARE WHEEL AT BRACKET
C0400044
code_image=http://www.elcats.ru/Codes.ashx?Key=IcoI0DdPvCnMfpZSwB5JR67Rl2b1IT5jVWEmSAGcg4Q%3d
1 шт
13
TIRES - ORNAMENTAL RING, WHITE SPECIAL REQUEST
A9E00015
code_image=http://www.elcats.ru/Codes.ashx?Key=OTfXRbn0geVJn0Ps23fG48IDVyet9l3y23h6x23XPdw%3d
5 шт
2
WHEEL COVER
21F00138
code_image=http://www.elcats.ru/Codes.ashx?Key=bLBXMzAaohaJsLszHPf%2frXjpR7GP%2bD%2fods9aBr1diys%3d
5 шт
3
LEAF SPRING
3A700136
code_image=http://www.elcats.ru/Codes.ashx?Key=JeRUZ5IhxgJD3ulbuSCTTKQkQfc%2bhZF6Jmsp5y%2bX9S8%3d
15 шт
3
REPLACED BY 110 401 09 94 - 20 94 TOGETHER WITH SPRING 110 401 01 28
04100139
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSnnuThPs%2b9gm0UN9X7naPdo%3d
3
REPLACED BY 110 401 09 94 - 20 94 TOGETHER WITH SPRING 110 401 01 28
0B300139
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSgOJGTAlZE%2brhpYPbrU1cTA%3d
3
REPLACED BY 110 401 09 94 - 20 94 TOGETHER WITH SPRING 110 401 01 28
18800139
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSgOvI6OYfJAMntVByJZUzHE%3d
3
REPLACED BY 110 401 09 94 - 20 94 TOGETHER WITH SPRING 110 401 01 28
B4F00138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSlZdMxMtlhz5pvXSN35nS%2fI%3d
3
REPLACED BY 110 401 09 94 - 20 94 TOGETHER WITH SPRING 110 401 01 28
BF400138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSh9xZbSn5Ytck8iSm3bhX5o%3d
3
REPLACED BY 110 401 09 94 - 20 94 TOGETHER WITH SPRING 110 401 01 28
BF700138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSls5oBoWG%2b77SvZDJedt2zc%3d
3
REPLACED BY 110 401 09 94 - 20 94 TOGETHER WITH SPRING 110 401 01 28
C0300138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSuKSP7NhPbxJbSNY36ZICPU%3d
3
REPLACED BY 110 401 09 94 - 20 94 TOGETHER WITH SPRING 110 401 01 28
C0600138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSii3YH8Nc7nX%2bWFrwFd%2brPs%3d
3
REPLACED BY 110 401 09 94 - 20 94 TOGETHER WITH SPRING 110 401 01 28
C7200138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSklT9QvVHzVq5BW4j4G3PVQ%3d
3
REPLACED BY 110 401 09 94 - 20 94 TOGETHER WITH SPRING 110 401 01 28
C8400138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSqus5z%2bVM9Kxz5JwCFRSdjo%3d
3
REPLACED BY 110 401 09 94 - 20 94 TOGETHER WITH SPRING 110 401 01 28
CA500138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSnlxHBLA3FgilF0A84HEl0Y%3d
3
REPLACED BY 110 401 09 94 - 20 94 TOGETHER WITH SPRING 110 401 01 28
CA800138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSuD8o3spdm5MzPHEpIChdBs%3d
3
REPLACED BY 110 401 09 94 - 20 94 TOGETHER WITH SPRING 110 401 01 28
DC200138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSib6ERAChmePxvmIkiINRcc%3d
3
REPLACED BY 110 401 09 94 - 20 94 TOGETHER WITH SPRING 110 401 01 28
FE700138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSqIJHvxv5rKwOdqd2St5pNk%3d
3
REPLACED BY 110 401 09 94 - 20 94 TOGETHER WITH SPRING 110 401 01 28
FEA00138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsStxGTlAgrr6Jm%2bTgxYstHG8%3d
3
LEAF SPRING EXPORT - SPECIAL REQUEST FOR TIRES 6.40-15 (OLD DESIGN)
8F800137
code_image=http://www.elcats.ru/Codes.ashx?Key=QDBN7deOvxHArgNXEaO5iQBTLffVQAGDF5d26nZFqWE%3d
15 шт
3
PIN EXPORT, SPECIAL REQUEST FOR TIRES 6.40-15 (NEW DESIGN)
67700136
code_image=http://www.elcats.ru/Codes.ashx?Key=JeRUZ5IhxgJD3ulbuSCTTJXIaUpnpaRYXTu%2bAT%2b689I%3d
15 шт
3
PRESSURE SPRING EXPORT, SPECIAL REQUEST FOR TIRES 6.40-15 (NEW DESIGN)
F3E00136
code_image=http://www.elcats.ru/Codes.ashx?Key=Q2qYZgxaFoOSeoLVgqNTtWspkr3AzEO3XlQ%2fiR6FkvY%3d
15 шт
3
RETAINING RING EXPORT, SPECIAL REQUEST FOR TIRES 6.40-15 (NEW DESIGN)
3B900139
code_image=http://www.elcats.ru/Codes.ashx?Key=WzK7yJEssf2oawObBWhYqI9B57rZPmwEStIBNLaAAVA%3d
15 шт
3
BRACKET FOR WHEEL COVER EXPORT, SPECIAL REQUEST FOR TIRES 6.40-15 (NEW DESIGN)
DCD00139
code_image=http://www.elcats.ru/Codes.ashx?Key=UL5AWCrWdcQgqMRjyqdRk0PC8M9QqHxg9x0V3K6CyLY%3d
15 шт
3
BALANCING WEIGHT 10 G OPTIONAL FOR DISC WHEEL
878000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2f1u43Mrgr%2fVg8Sz1tN6XrDk%3d
NB шт
3
WHEEL COVER SUPPORTING RING EXPORT - SPECIAL REQUEST FOR TIRES 6.40-15 (OLD DESIGN)
05C00139
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSn5okT%2fCtGPnahEdwrQ3MJA%3d
5 шт
5
BALANCING WEIGHT 100 G OPTIONAL FOR DISC WHEEL
707000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2fzN3tOshZeQjo826STZlK84%3d
NB шт
5
BALANCING WEIGHT 110 G OPTIONAL FOR DISC WHEEL
70A000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2f1Q8agG7sTPFAk%2fewyTMbEY%3d
NB шт
5
BALANCING WEIGHT 120 G OPTIONAL FOR DISC WHEEL
794000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2fxmI6oQ2meTR8HEFXBEYsz8%3d
NB шт
5
BALANCING WEIGHT 20 G OPTIONAL FOR DISC WHEEL
9BC000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2f9km1EF8NXaT1%2fIrory4fAY%3d
NB шт
5
BALANCING WEIGHT 30 G OPTIONAL FOR DISC WHEEL
704000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2f33VUivec%2b0vXymuVnOe8Rg%3d
NB шт
5
BALANCING WEIGHT 40 G OPTIONAL FOR DISC WHEEL
9CB000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2f5BoB48acyo0lVSo5Kjdb2M%3d
NB шт
5
BALANCING WEIGHT 50 G OPTIONAL FOR DISC WHEEL
791000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2fxaKQL0bdc13t1rYr3hM%2bEU%3d
NB шт
5
BALANCING WEIGHT 60 G OPTIONAL FOR DISC WHEEL
7B8000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2f%2f%2b%2fUjJrY0wun%2bYxSaDf1qU%3d
NB шт
5
BALANCING WEIGHT 70 G OPTIONAL FOR DISC WHEEL
7B5000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2f0G%2fgJdbVxHLbHTs13mCCPU%3d
NB шт
5
BALANCING WEIGHT 80 G OPTIONAL FOR DISC WHEEL
875000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2fxDkQO%2fN0kzo%2b2Ioq%2fF0a2w%3d
NB шт
5
BALANCING WEIGHT 90 G OPTIONAL FOR DISC WHEEL
8A8000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2f0ZU1AECUuIJWyMu4Yo9JJE%3d
NB шт
6
WHEEL COVER CAN BE EXCHANGED IN SETS WITH 186 401 00 25 FOR DISC WHEEL UP TO CHASSIS 7515799
0D4000F4
code_image=http://www.elcats.ru/Codes.ashx?Key=kCBv6kx2hVrPV3J3q9ulfRjNK6SBrWEbnAg5%2fuqS3kI%3d
4 шт
6
SPRING FOR BALANCING WEIGHT AT DISC WHEEL
6FE000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2f7u1z8P1XngcJvXL1gLiBf0%3d
NB шт
7
SPH. COLLAR NUT FOR DISC WHEEL AT FRONT AXLE AND REAR AXLE Код заменен на
E94000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=U6a03FoPiYYZKQnuJZbwavTMrKd1scGNq4G7sUeSovU%3d
7
WHEEL COVER FOR DISC WHEEL FROM CHASSIS 7515800
BFA00138
code_image=http://www.elcats.ru/Codes.ashx?Key=GxRDWg3HR64XhQFczgrnmO7heY4vbkyAeULt5zQQ0mA%3d
4 шт
8
SPH. COLLAR NUT FOR DISC WHEEL AT FRONT AXLE AND REAR AXLE EXPORT - SPECIAL REQUEST FOR TIRES 6.40-15
F39000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=U6a03FoPiYYZKQnuJZbwagOk%2bsZyPQm%2b32CfewJXXCg%3d
20 шт
8
SPH. COLLAR NUT FOR DISC WHEEL AT FRONT AXLE AND REAR AXLE SEE ALSO GROUP 33 AND 35
353000AC
code_image=http://www.elcats.ru/Codes.ashx?Key=7XtByzpM1KrSygrcOMg2xNygCUxtom9dGBI6ZP%2fSiUE%3d
12 шт
8
VALVE CAP WITH DUST CAP FOR HOSE VALVE Код заменен на
1BF000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=D%2f8p2ydOr5MTQm%2fmdgGmt2DWsFsy6bQErG1jKWRxQNw%3d
9
VALVE CAP WITH DUST CAP FOR HOSE VALVE
30C000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=D%2f8p2ydOr5MTQm%2fmdgGmt0r61qGF5JSbu5H7xKwIdhA%3d
5 шт
9
SLEEVE FOR HOSE VALVE ONLY VALID FOR HOSE WITH VALVE DIA. 11.5 MM
C7B00015
code_image=http://www.elcats.ru/Codes.ashx?Key=OTfXRbn0geVJn0Ps23fG4%2bSOQ78NF8hV4%2fs6A%2bo2Aho%3d
5 шт
