ENGINE COOLING / ENGINE COOLING — Mercedes-Benz TYP 190 121.000: схема и номера деталей | Глав Авто
Запчасти
/

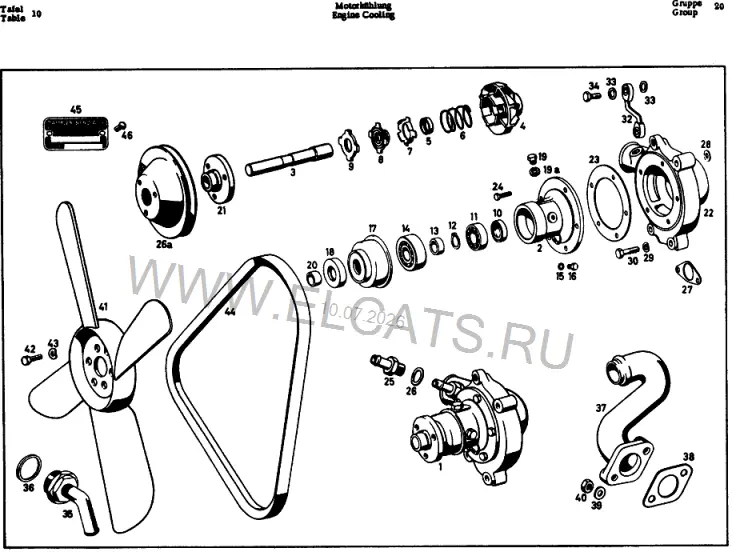

ENGINE COOLING / ENGINE COOLING
Mercedes-Benz · TYP 190 · 121.000
ENGINE COOLING / ENGINE COOLING
ENGINE COOLING [Z12]
Детали узла
61
0
REPLACED BY X 127 200 01 01 TOGETHER WITH 1 BREATHER PIPE 121 200 02 58 UP TO ENGINE 8504452
FC000135
code_image=http://www.elcats.ru/Codes.ashx?Key=zFGNzlaaZjzpovcALaDOT4YWkRsv8LR5Qp%2fnsfhfoF0%3d
0
WATER PUMP, X WITHOUT PULLEY UP TO ENGINE 8514501 EXCHANGE SCREW NIPPLE 180 203 01 08 AGAINST LOCKING SCREW M 16X1.5 DIN 906-4 D FROM Код заменен на
36D000E3
code_image=http://www.elcats.ru/Codes.ashx?Key=PQsZeWXkUlAgDBRFnKEsTgapPQAe%2beZt0%2bXfByKSTEw%3d
1
REPLACED BY X 121 200 05 01 TOGETHER WITH 1 BREATHER PIPE 121 200 02 58 LEFT-HAND DRIVE SPECIAL REQUEST - GENERATOR 300 W FROM ENGINE
A7C000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=%2fAVtXC%2fP7RLcxXNNYYsAqlHpoqBk18mRzLEiVTkkpbE%3d
1
REPLACED BY X 121 200 05 01 TOGETHER WITH 1 DISTRIBUTOR TUBE 121 500 12 91 1 BREATHER PIPE 121 200 02 58 LEFT-HAND DRIVE SPECIAL REQUE
B78000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=%2fAVtXC%2fP7RLcxXNNYYsAqnHEhoh6GxA1xpgfiT7gWK0%3d
1
WATER PUMP WITHOUT PULLEY X LEFT-HAND DRIVE SPECIAL REQUEST - GENERATOR 300 W FROM ENGINE 8505749
C50000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=%2fAVtXC%2fP7RLcxXNNYYsAqnOsOjv3%2fk28CcoWv%2fxwq2Y%3d
1 шт
1
BEARING HOUSING X UP TO ENGINE 8504452
02000136
code_image=http://www.elcats.ru/Codes.ashx?Key=2y6O2dGgUvWME28mjaSAqZ2ENbKPzhuiMmIqkl6WZyw%3d
1 шт
1
BEARING HOUSING X UP TO ENGINE 8505748
02000136
code_image=http://www.elcats.ru/Codes.ashx?Key=2y6O2dGgUvWME28mjaSAqZ2ENbKPzhuiMmIqkl6WZyw%3d
1
WATER PUMP, X WITHOUT PULLEY UP TO ENGINE 8514501 EXCHANGE SCREW NIPPLE 180 203 01 08 AGAINST LOCKING SCREW M 16X1.5 DIN 906-4 D FROM
373000E3
code_image=http://www.elcats.ru/Codes.ashx?Key=PQsZeWXkUlAgDBRFnKEsTh1V7ouXrQx0mXLf0hTnsOI%3d
1 шт
10
SEALING RING
D13000EB
code_image=http://www.elcats.ru/Codes.ashx?Key=8pr2LClwwxwppOe6bW8K0j4YN7oQtRD9mLiT5WJ3Ga8%3d
1 шт
13
SPACER SLEEVE
EEB00135
code_image=http://www.elcats.ru/Codes.ashx?Key=2y6O2dGgUvWME28mjaSAqfaMgEaA%2fD1vQLoQLPrbH6o%3d
1 шт
17
SEALING RING HOLDER
F6400137
code_image=http://www.elcats.ru/Codes.ashx?Key=zFGNzlaaZjzpovcALaDOT9hP5LPmXLl6uGVbwdWeZ04%3d
1 шт
18
SEALING RING
E0700138
code_image=http://www.elcats.ru/Codes.ashx?Key=e47LwZcYqZbuZY%2fk1NPA%2b2NoBSBkJ2BjfCrhI4s84Dw%3d
1 шт
19
LOCKING SCREW FOR VENTILATION AT BEARING HOUSING
5F300139
code_image=http://www.elcats.ru/Codes.ashx?Key=d9q7kgQQ4v99B1NR%2bo4W67noVqW6zEOT3uQ%2fhZKK%2f0g%3d
1 шт
2
BEARING HOUSING X FROM ENGINE 8504453
2AA000E3
code_image=http://www.elcats.ru/Codes.ashx?Key=IzMx3HuhYAHv9g7zbwVQT%2fs304nsst%2bnPMcnTY28Dc0%3d
1 шт
2
BEARING HOUSING X FROM ENGINE 8505749
2AA000E3
code_image=http://www.elcats.ru/Codes.ashx?Key=IzMx3HuhYAHv9g7zbwVQT%2fs304nsst%2bnPMcnTY28Dc0%3d
20
INTERMEDIATE RING
F6900135
code_image=http://www.elcats.ru/Codes.ashx?Key=2y6O2dGgUvWME28mjaSAqX3tBhxp1Do9WMqkUV98XPQ%3d
1 шт
21
HUB
CC600135
code_image=http://www.elcats.ru/Codes.ashx?Key=apiYU%2b%2bWCAdWGhka6O%2fIQgxfHSqFql0GVzqTZODvZI4%3d
1 шт
21
WATER PUMP HOUSING UP TO ENGINE 8514501 LOCK CONNECTING THREAD FOR SHORT-CIRCUIT PIPE WITH SCREW PLUG M 16X1,5 DIN 906-4 D Код заменен на
43F000E3
code_image=http://www.elcats.ru/Codes.ashx?Key=IzMx3HuhYAHv9g7zbwVQT1odiI3IgLn9jndhErmNCN0%3d
21
WATER PUMP HOUSING X UP TO ENGINE 8504452
FE400135
code_image=http://www.elcats.ru/Codes.ashx?Key=2y6O2dGgUvWME28mjaSAqQawbHhEcekXoIom2U3Zhvo%3d
1 шт
22
GASKET X FOR WATER PUMP HOUSING AT BEARING HOUSING UP TO ENGINE 8504452
E4000135
code_image=http://www.elcats.ru/Codes.ashx?Key=2y6O2dGgUvWME28mjaSAqa2%2bQjfI5izGWl5DC2FSuGs%3d
1 шт
22
GASKET X FOR WATER PUMP HOUSING AT BEARING HOUSING UP TO ENGINE 8505748
E4000135
code_image=http://www.elcats.ru/Codes.ashx?Key=2y6O2dGgUvWME28mjaSAqa2%2bQjfI5izGWl5DC2FSuGs%3d
22
WATER PUMP HOUSING X FROM ENGINE 7520213-8505748
6E2000C8
code_image=http://www.elcats.ru/Codes.ashx?Key=RAY%2fIHTR0qXSoW82hiabV550dMMiXyxmxwWI7dlAKSo%3d
1 шт
22
WATER PUMP HOUSING X FROM ENGINE 8505749
442000C8
code_image=http://www.elcats.ru/Codes.ashx?Key=RAY%2fIHTR0qXSoW82hiabV1%2bDiEA37F1rbw%2bS5tTK1sM%3d
1 шт
22
WATER PUMP X HOUSING UP TO ENGINE 8514501 LOCK CONNECTING THREAD FOR SHORT-CIRCUIT PIPE WITH SCREW PLUG M 16X1,5 DIN 906-4 D FROM ENG
E77000E3
code_image=http://www.elcats.ru/Codes.ashx?Key=IzMx3HuhYAHv9g7zbwVQT1mE52S52iXE0PYma%2bOspIM%3d
1 шт
22
WATER PUMP HOUSING X SPECIAL REQUEST 300 WATT GENERATOR
442000C8
code_image=http://www.elcats.ru/Codes.ashx?Key=RAY%2fIHTR0qXSoW82hiabV1%2bDiEA37F1rbw%2bS5tTK1sM%3d
22
WATER PUMP HOUSING X SPECIAL REQUEST 300 WATT GENERATOR
6E2000C8
code_image=http://www.elcats.ru/Codes.ashx?Key=RAY%2fIHTR0qXSoW82hiabV550dMMiXyxmxwWI7dlAKSo%3d
22
WATER PUMP HOUSING X SPECIAL REQUEST 300 WATT GENERATOR
8EA000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=RAY%2fIHTR0qXSoW82hiabV0eAy0QrkRALXmUix84tc20%3d
22
WATER PUMP HOUSING X UP TO ENGINE 7520212
8EA000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=RAY%2fIHTR0qXSoW82hiabV0eAy0QrkRALXmUix84tc20%3d
1 шт
23
GASKET X FOR WATER PUMP HOUSING AT BEARING HOUSING FROM ENGINE 8504453
FB0000E2
code_image=http://www.elcats.ru/Codes.ashx?Key=IzMx3HuhYAHv9g7zbwVQT5ctcdExiTKOeNk4QoAr37I%3d
1 шт
23
GASKET X FOR WATER PUMP HOUSING AT BEARING HOUSING FROM ENGINE 8505749
FB0000E2
code_image=http://www.elcats.ru/Codes.ashx?Key=IzMx3HuhYAHv9g7zbwVQT5ctcdExiTKOeNk4QoAr37I%3d
25
THREADED NIPPLE X AT WATER PUMP HOUSING FOR SHORT-CIRCUIT PIPE UP TO ENGINE 7520212
E1600135
code_image=http://www.elcats.ru/Codes.ashx?Key=tdWxCQqd1kkfbG5wwP4%2f8NIfz7wMrOBHf3ko6rNTMH0%3d
25
THREADED NIPPLE X AT WATER PUMP HOUSING FOR SHORT-CIRCUIT PIPE UP TO ENGINE 8504452 FROM ENGINE 8514502
E1600135
code_image=http://www.elcats.ru/Codes.ashx?Key=tdWxCQqd1kkfbG5wwP4%2f8NIfz7wMrOBHf3ko6rNTMH0%3d
1 шт
26a
PULLEY FOR FAN, WATER PUMP
ABD000C8
code_image=http://www.elcats.ru/Codes.ashx?Key=7fO9KetVEEDq8RvvXm192rS5%2fE8NCL12EIIgBz26%2bAY%3d
1 шт
27
GASKET FOR WATER PUMP AT CYLINDER CRANKCASE
ED600135
code_image=http://www.elcats.ru/Codes.ashx?Key=tdWxCQqd1kkfbG5wwP4%2f8DZIy3IgI4RUG2PzNKDsffo%3d
1 шт
28
SEALING RING FOR WATER PUMP AT CYLINDER CRANKCASE
CC900135
code_image=http://www.elcats.ru/Codes.ashx?Key=tdWxCQqd1kkfbG5wwP4%2f8DgIK8Eo%2b71XkNhP0lIZlxk%3d
1 шт
28
BREATHER PIPE X FOR WATER PUMP FROM ENGINE 7520213-8505748
72A000C8
code_image=http://www.elcats.ru/Codes.ashx?Key=%2fAVtXC%2fP7RLcxXNNYYsAqhdx1MS7EBF1SYQxBhOlZlI%3d
1 шт
28
BREATHER PIPE X FOR WATER PUMP UP TO ENGINE 7520212
A5E000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=%2fAVtXC%2fP7RLcxXNNYYsAqjY7tPHqKRKnzfVK0VBQxF8%3d
28
BREATHER PIPE X FOR WATER PUMP UP TO ENGINE 8504452
A5E000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=%2fAVtXC%2fP7RLcxXNNYYsAqjY7tPHqKRKnzfVK0VBQxF8%3d
1 шт
3
WATER PUMP SHAFT
FC900135
code_image=http://www.elcats.ru/Codes.ashx?Key=2y6O2dGgUvWME28mjaSAqUqjTDXvFkmdd0JnfdeQ6%2fY%3d
1 шт
3
IMPELLER X UP TO ENGINE 8504452
E2500135
code_image=http://www.elcats.ru/Codes.ashx?Key=2y6O2dGgUvWME28mjaSAqfzpF5s5m%2bT2vkucQgn9IQo%3d
1 шт
3
IMPELLER X UP TO ENGINE 8505748
E2500135
code_image=http://www.elcats.ru/Codes.ashx?Key=2y6O2dGgUvWME28mjaSAqfzpF5s5m%2bT2vkucQgn9IQo%3d
32
TUBE ELBOW FOR HEATING CONNECTION UP TO ENGINE 8509339
C3000135
code_image=http://www.elcats.ru/Codes.ashx?Key=zFGNzlaaZjzpovcALaDOTwLWF6P8MensuizUtkOs7vM%3d
1 шт
32
BREATHER PIPE X FOR WATER PUMP FROM ENGINE 8504453
ADF000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=%2fAVtXC%2fP7RLcxXNNYYsAqs2K2lNbVzTvsQY5q3b5wsg%3d
1 шт
32
BREATHER PIPE X FOR WATER PUMP FROM ENGINE 8505749
ADF000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=%2fAVtXC%2fP7RLcxXNNYYsAqs2K2lNbVzTvsQY5q3b5wsg%3d
35
HEATING CONNECTION FROM ENGINE 8509340
CC000135
code_image=http://www.elcats.ru/Codes.ashx?Key=zFGNzlaaZjzpovcALaDOTxw0Y30RFjNwlIW3AqN6w7A%3d
1 шт
37
COOLING WATER
00500136
code_image=http://www.elcats.ru/Codes.ashx?Key=tdWxCQqd1kkfbG5wwP4%2f8O5oBM8mg2QI8ETQbu5%2f3vw%3d
1 шт
38
GASKET FOR COOLING WATER DISCHARGE NIPPLE AT CYLINDER HEAD
F1800135
code_image=http://www.elcats.ru/Codes.ashx?Key=tdWxCQqd1kkfbG5wwP4%2f8NL%2fmM6qnHxZwSJz6hsyAQI%3d
1 шт
4
COVER FOR SEALING RING HOLDER Код заменен на
FC0002A9
code_image=http://www.elcats.ru/Codes.ashx?Key=T3NeCBSYFeSLv%2bvUya6NS0R%2fEi2IM4cao%2bSEwxM6tUY%3d
4
IMPELLER X FROM ENGINE 8504453
18D000E3
code_image=http://www.elcats.ru/Codes.ashx?Key=IzMx3HuhYAHv9g7zbwVQTxrFJiloCv4fJldBMowzuoI%3d
1 шт
4
IMPELLER X FROM ENGINE 8505749
18D000E3
code_image=http://www.elcats.ru/Codes.ashx?Key=IzMx3HuhYAHv9g7zbwVQTxrFJiloCv4fJldBMowzuoI%3d
40
HEX. NUT FOR COOLING WATER DISCHARGE NIPPLE AT CYLINDER HEAD
61A00046
code_image=http://www.elcats.ru/Codes.ashx?Key=diPViVXk5A3NiVu2GqV2krTM35zEhpkmwSJ%2f7DzZ36E%3d
2 шт
41
FAN
F6D00137
code_image=http://www.elcats.ru/Codes.ashx?Key=wFP5233d2TwthAOntp2gl54f9QdnWyQOEkHAxJMHurk%3d
1 шт
41
FAN EXPORT - SPECIAL REQUEST TROPICAL DESIGN
C7B00135
code_image=http://www.elcats.ru/Codes.ashx?Key=zFGNzlaaZjzpovcALaDOT2BCXW6Uw3PHmQ44B9oOtR8%3d
1 шт
41
SHIM FOR FAN AT PULLEY EXPORT - SPECIAL REQUEST TROPICAL DESIGN
F7000137
code_image=http://www.elcats.ru/Codes.ashx?Key=wFP5233d2TwthAOntp2glyHzyDPnnH8Tat6zWc7NE3U%3d
1 шт
5
COVER FOR SEALING RING HOLDER
E1B002AA
code_image=http://www.elcats.ru/Codes.ashx?Key=T3NeCBSYFeSLv%2bvUya6NS6jb5BF3Q8as8bdXQLCXkmY%3d
1 шт
6
PRESSURE SPRING
91800138
code_image=http://www.elcats.ru/Codes.ashx?Key=Q2qYZgxaFoOSeoLVgqNTtT3A1Yk%2fGtNTJh7y%2fLpzHdk%3d
1 шт
6
SLIP RING CAGE Код заменен на
047002AA
code_image=http://www.elcats.ru/Codes.ashx?Key=T3NeCBSYFeSLv%2bvUya6NS8xdxWsdKfIgxQUZe5lN0VA%3d
7
SEALING RING Код заменен на
F24002A9
code_image=http://www.elcats.ru/Codes.ashx?Key=T3NeCBSYFeSLv%2bvUya6NSxhDluDhXUdwo3ietPHf41A%3d
7
SLIP RING CAGE
011002AA
code_image=http://www.elcats.ru/Codes.ashx?Key=T3NeCBSYFeSLv%2bvUya6NSz6O7E68Ze4Y6Zy9YGHJoXA%3d
1 шт
8
SEALING RING
182002AA
code_image=http://www.elcats.ru/Codes.ashx?Key=T3NeCBSYFeSLv%2bvUya6NS0KwXFiXX0WHsfihmFl3RIw%3d
1 шт
9
SLIP RING
164002AA
code_image=http://www.elcats.ru/Codes.ashx?Key=T3NeCBSYFeSLv%2bvUya6NSxk3dzE4wvgHQ2ENex5xtxg%3d
1 шт
