CLUTCH / CLUTCH — Mercedes-Benz TYP 190 121.002: схема и номера деталей | Глав Авто
Запчасти
/
CLUTCH / CLUTCH
Mercedes-Benz · TYP 190 · 121.002

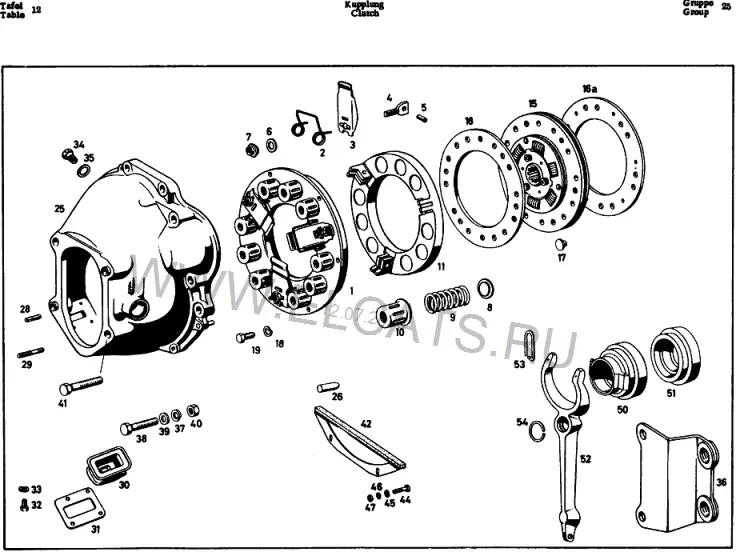

CLUTCH / CLUTCH
CLUTCH [Z12]
Детали узла
52
0
Код заменен на
B15000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=wSRO%2bwQnrV5UgQHuk5L4hP5wtO9HOB8EKYQdYeX%2bLz0%3d
0
Код заменен на
BC5000C8
code_image=http://www.elcats.ru/Codes.ashx?Key=wSRO%2bwQnrV5UgQHuk5L4hDBL%2bQ7r7dcJwRCUKjBRA7k%3d
0
CLUTCH WITHOUT CLUTCH DISC Код заменен на
F8500137
code_image=http://www.elcats.ru/Codes.ashx?Key=YxhUfkEWi6jHRY%2bI4wqKQ6Q40qvL4Yy%2f3Z7%2fTa0w2AI%3d
1
CLUTCH WITHOUT CLUTCH DISC
E9D00135
code_image=http://www.elcats.ru/Codes.ashx?Key=YxhUfkEWi6jHRY%2bI4wqKQ9kZXlC1I3ZoSnlt8AAud5s%3d
1 шт
10
SPRING SLEEVE FROM CHASSIS 8506803
B4400008
code_image=http://www.elcats.ru/Codes.ashx?Key=utM%2f0s0o3Phtdi2tWCmJd3ktbzmcO%2bnWlMbkmN1cT5E%3d
9 шт
10
CLUTCH PRESSURE PLATE UP TO CHASSIS 8506802
6B400009
code_image=http://www.elcats.ru/Codes.ashx?Key=utM%2f0s0o3Phtdi2tWCmJd7cPUiaEBR0XdRvlCkN4KQE%3d
1 шт
11
Код заменен на
6FD000C8
code_image=http://www.elcats.ru/Codes.ashx?Key=wSRO%2bwQnrV5UgQHuk5L4hH2EkFJBj6KAGTR8SQZVux8%3d
11
Код заменен на
A8E000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=wSRO%2bwQnrV5UgQHuk5L4hH8WLI9yvH33lNEX6IL2NVg%3d
11
CLUTCH DISC Код заменен на
A94000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=wSRO%2bwQnrV5UgQHuk5L4hCCXyXfRkvnhrr9t1yJLVdQ%3d
11
CLUTCH PRESSURE PLATE FROM CHASSIS 8506803
19E00009
code_image=http://www.elcats.ru/Codes.ashx?Key=utM%2f0s0o3Phtdi2tWCmJd4W57vjNiZACqjs4qzIhiPE%3d
1 шт
15
CLUTCH DISC
700000C8
code_image=http://www.elcats.ru/Codes.ashx?Key=wSRO%2bwQnrV5UgQHuk5L4hDjzja9I2qk4w2BfHAX4Xxw%3d
1 шт
16
CLITCH LINING FROM CHASSIS 7514306
62900139
code_image=http://www.elcats.ru/Codes.ashx?Key=iFaYdRFO0bg5F4rg%2fBaSkfkxpjF2iVzj%2boyAkkgH6JA%3d
1 шт
16
CLITCH LINING UP TO CHASSIS 7514305
62900139
code_image=http://www.elcats.ru/Codes.ashx?Key=iFaYdRFO0bg5F4rg%2fBaSkfkxpjF2iVzj%2boyAkkgH6JA%3d
2 шт
16a
CLUTCH LINING, FLYWHEEL SIDE FROM CHASSIS 7514306
E3F000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=wOeuq7pob2C%2bLltIQEZQPLhMtCgi3Q4m4SauQx0fEFg%3d
1 шт
17
REPLACED BY X 128 250 03 05 TOGETHER WITH 1 STUD BOLT 121 990 00 05 1 DOWEL PIN 180 991 01 62 1 DOWEL PIN 180 991 02 62 IN CRANKCASE I
06500136
code_image=http://www.elcats.ru/Codes.ashx?Key=YxhUfkEWi6jHRY%2bI4wqKQ5Hydo2%2bkcb6X6%2bBUdu54Oo%3d
17
REPLACED BY X 128 250 03 05 TOGETHER WITH 1 STUD BOLT 121 990 00 05 1 DOWEL PIN 180 991 01 62 1 DOWEL PIN 180 991 02 62 IN CRANKCASE I
E39000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=wSRO%2bwQnrV5UgQHuk5L4hPevo4zDtePHlYXVGGrA5xo%3d
17
HOLLOW RIVET FOR CLUTCH LINING
58D000EB
code_image=http://www.elcats.ru/Codes.ashx?Key=O5oXOLwqGqjZLMRqj5A9BQdiEGuu5P9le%2bE6gt%2f3HLI%3d
12 шт
2
SPRING
D8D00008
code_image=http://www.elcats.ru/Codes.ashx?Key=utM%2f0s0o3Phtdi2tWCmJdxDPQEZ3BET1ov7BMpUPLKU%3d
3 шт
25
REPLACED BY X 128 250 04 05 TOGETHER WITH 1 STUD BOLT 121 990 00 05 1 DOWEL PIN 180 991 01 62 1 DOWEL PIN 180 991 02 62 IN CRANKCASE I
112000C8
code_image=http://www.elcats.ru/Codes.ashx?Key=wSRO%2bwQnrV5UgQHuk5L4hP%2bBt960XBUNRtEkyKpyPiQ%3d
25
REPLACED BY X 128 250 04 05 TOGETHER WITH 1 STUD BOLT 121 990 00 05 1 DOWEL PIN 180 991 01 62 1 DOWEL PIN 180 991 02 62 IN CRANKCASE I
F3900135
code_image=http://www.elcats.ru/Codes.ashx?Key=YxhUfkEWi6jHRY%2bI4wqKQ%2b2bvcB2vnP%2fJn9O5LrVXeg%3d
25
CLUTCH HOUSING X FROM CHASSIS 8513955
0B7000E4
code_image=http://www.elcats.ru/Codes.ashx?Key=DI7lzP42acgO2v1Y6o0VdlVKWw3RYOn5rDRqipo%2b1Ck%3d
1 шт
25
CLUTCH HOUSING X FROM CHASSIS 8513955
10F000E3
code_image=http://www.elcats.ru/Codes.ashx?Key=DI7lzP42acgO2v1Y6o0Vdq5gule%2biuAnyNkSNTpYDPo%3d
1 шт
25
CYLINDRICAL PIN UP TO CHASSIS 8513954
42B00139
code_image=http://www.elcats.ru/Codes.ashx?Key=L2zpij6BrHdjaRc%2fkm19bksUkbrZzzKfKSS5%2b3eu7rc%3d
1 шт
26
DOWEL PIN DIA 12 X 34 FROM CHASSIS 8513955
D7000136
code_image=http://www.elcats.ru/Codes.ashx?Key=zptoisD4bmiYFgxlo5a9bjs41XFOniXxvYXDMYH6Nng%3d
1 шт
29
STUD BOLT FOR BRACKET, SPRING SUSPENSION IS DELIVERED AS SINGLE PART
982000C8
code_image=http://www.elcats.ru/Codes.ashx?Key=s6Wtw9wNCndFEhwjUf9wu0l7xEQOt9G%2b5UJ8jHifu1c%3d
1 шт
29
DOWEL PIN IN CASE OF CLUTCH HOUSING WITH DOWEL PIN DIA. 12-MM AND INTERMEDIATE PLATE WITH DOWEL PIN DIA. 8-MM RECESSED DIA. 12 MM
E1B00136
code_image=http://www.elcats.ru/Codes.ashx?Key=zptoisD4bmiYFgxlo5a9btGazvB36593fkNbAR7TnzE%3d
1 шт
29
DOWEL PIN IN CASE OF CLUTCH HOUSING WITH DOWEL PIN DIA. 8-MM AND INTERMEDIATE PLATE WITH DOWEL PIN DIA. 12-MM RECESSED DIA. 8 MM T
1CC00137
code_image=http://www.elcats.ru/Codes.ashx?Key=zptoisD4bmiYFgxlo5a9bpkUGLrEWzu62Fwd%2fkSGXh4%3d
1 шт
3
LEVER
DAE00008
code_image=http://www.elcats.ru/Codes.ashx?Key=utM%2f0s0o3Phtdi2tWCmJd3Jlnv6M8QXnUMYGZzZpJUs%3d
3 шт
30
SLEEVE AT CLUTCH HOUSING
6D6000C5
code_image=http://www.elcats.ru/Codes.ashx?Key=eA9zDQzD2cj5SLB7Aw4ilNLeHL4uuwe7XKXc%2bEPfnJY%3d
1 шт
31
GASKET HOLDER FOR SLEEVE AT CLUTCH HOUSING
775000C5
code_image=http://www.elcats.ru/Codes.ashx?Key=eA9zDQzD2cj5SLB7Aw4ilMBDmfBuKHMGEi9wIjlzCDE%3d
1 шт
34
BREATHER SCREW
7BD000C5
code_image=http://www.elcats.ru/Codes.ashx?Key=k%2bMM15iE5xcdJ5mhj%2bRY2DJwFCRKL9D3jo35P0wXvN8%3d
1 шт
36
COVER PLATE FOR CLUTCH HOUSING Код заменен на
FB100135
code_image=http://www.elcats.ru/Codes.ashx?Key=YxhUfkEWi6jHRY%2bI4wqKQ9hm%2bKXtUwyjG8RQ2zAFQFM%3d
36
FIXING PLATE X FOR EXHAUST SUPPORT
631000C8
code_image=http://www.elcats.ru/Codes.ashx?Key=Rwx706a%2bgstJjDdyoNIPkMnxVeux%2bUTPebVT3yzcJmY%3d
1 шт
4
SWIVEL PIN
D8700008
code_image=http://www.elcats.ru/Codes.ashx?Key=utM%2f0s0o3Phtdi2tWCmJdyQB%2fZ6bQ%2fSygPcInMAB5JM%3d
3 шт
4
RING FOR ADJUSTING NUT Код заменен на
B6E00008
code_image=http://www.elcats.ru/Codes.ashx?Key=utM%2f0s0o3Phtdi2tWCmJd8R642nkWHOnFf60whmGEOo%3d
42
COVER PLATE FOR CLUTCH HOUSING
E6700135
code_image=http://www.elcats.ru/Codes.ashx?Key=YxhUfkEWi6jHRY%2bI4wqKQww%2fmTkyfd3D0Urw5GTya5E%3d
1 шт
42
COVER PLATE X FOR CLUTCH HOUSING ONLY FOR CHILLED CASTING
39F0013B
code_image=http://www.elcats.ru/Codes.ashx?Key=hzbgnRSBHpNllpk5d%2faUg65tWw8fwRwFd0OVwKTl%2fGs%3d
1 шт
42
GASKET X FOR CLUTCH HOUSING ONLY FOR CHILLED CASTING
64800138
code_image=http://www.elcats.ru/Codes.ashx?Key=hzbgnRSBHpNllpk5d%2faUg%2fO2qVTp5irNZi0WV5XJka8%3d
1 шт
50
CLUTCH RELEASE BEARING WITH RELEASE BODY
B12000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=wSRO%2bwQnrV5UgQHuk5L4hEJ7Jk85y6IRonI%2bKL0xd4w%3d
1 шт
51
RELEASE BEARING
6FA000C8
code_image=http://www.elcats.ru/Codes.ashx?Key=2c0345KTRyyd7cXsmI9yU8MXwXeWjQ%2b7QVSxwwyYsRc%3d
1 шт
52
RELEASE FORK FOR CLUTCH
26900136
code_image=http://www.elcats.ru/Codes.ashx?Key=x9y9%2bkGlUOvNuGsG%2f4cRx9udBycqJPZpzuI7e8y6vT4%3d
1 шт
53
SPRING CLAMP FOR RELEASE FORK AT RELEASE BODY
D77000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=iehKVp5KMNWAJ9P8yqf2pY24KdjwcPIghv0lCFiwVGU%3d
2 шт
6
ADJUSTING NUT Код заменен на
39300009
code_image=http://www.elcats.ru/Codes.ashx?Key=utM%2f0s0o3Phtdi2tWCmJd6uUFOl9N180fMlAuObk2Fs%3d
6
RING FOR ADJUSTING NUT
85E00009
code_image=http://www.elcats.ru/Codes.ashx?Key=utM%2f0s0o3Phtdi2tWCmJd23drafeiMtBpmKb02dc0r8%3d
3 шт
7
ADJUSTING NUT
D2700008
code_image=http://www.elcats.ru/Codes.ashx?Key=utM%2f0s0o3Phtdi2tWCmJd9FdYZpHZoTaHhfErc%2fRxu8%3d
3 шт
7
SPRING RETAINER UP TO CHASSIS 8506802
B28000EA
code_image=http://www.elcats.ru/Codes.ashx?Key=Pjx4jHzKmS5Et7bpVxeH16sAY4rLztjjchurW4aOeNU%3d
9 шт
8
REPLACED BY 9 PIECES 000 252 16 20 FROM CHASSIS 8506803-8509571
D5D00008
code_image=http://www.elcats.ru/Codes.ashx?Key=utM%2f0s0o3Phtdi2tWCmJd1nmxe%2bjQZPpBm8894Ow0AU%3d
8
SPRING RETAINER FROM CHASSIS 850680:,
BAA00008
code_image=http://www.elcats.ru/Codes.ashx?Key=utM%2f0s0o3Phtdi2tWCmJdyj0Rr0bwQjaBDtZrhwfL%2bM%3d
9 шт
8
SPRING 49.5-MM HIGH, OUTER DIA. 25.5-MM FROM CHASSIS 7504161-8506802
3050000A
code_image=http://www.elcats.ru/Codes.ashx?Key=utM%2f0s0o3Phtdi2tWCmJdx8GDM5aMVdtsjieIRpzJ8c%3d
9 шт
8
SPRING 44.5 MM HIGH UP TO CHASSIS 7504160
A1500008
code_image=http://www.elcats.ru/Codes.ashx?Key=utM%2f0s0o3Phtdi2tWCmJdyun5RG6jgfn9oZLpGCLnPQ%3d
9 шт
9
SPRING 50-MM HIGH, OUTER DIA 29-MM FROM CHASSIS 8509572
A2F00009
code_image=http://www.elcats.ru/Codes.ashx?Key=utM%2f0s0o3Phtdi2tWCmJd2M7BCbybFT8FPoFh%2f3kE%2fU%3d
9 шт
9
SPRING SLEEVE UP TO CHASSIS 8506802
0980000A
code_image=http://www.elcats.ru/Codes.ashx?Key=utM%2f0s0o3Phtdi2tWCmJd92ZiKLc5eN8%2fAenQkwIvYE%3d
9 шт
