FUEL TANK / FUEL TANK — Mercedes-Benz TYP 190 121.010: схема и номера деталей | Глав Авто
Запчасти
/
FUEL TANK / FUEL TANK
Mercedes-Benz · TYP 190 · 121.010
FUEL TANK / FUEL TANK

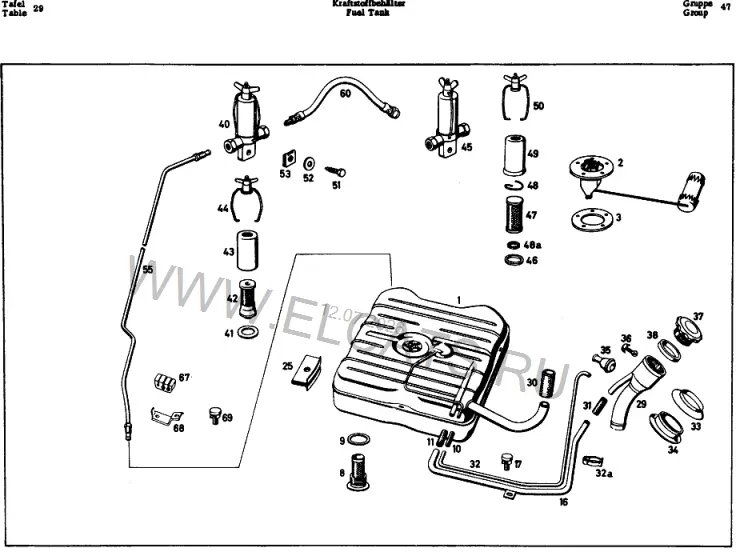

FUEL TANK [Z12]
Детали узла
63
0
REPLACED BY 120 470 30 01 TOGETHER WITH 1 FUEL PIPE 120 470 08 70 UP TO CHASSIS 7510643
5D6000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=6UViROcjXVDwEl6lIF%2fnCpzpjuveJu4HWON1Wfsaq0Q%3d
1
ELECTRIC TRANSMITTER Код заменен на
891000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=nhpY5YFvurtSTPwJAk6a771ez%2f6t9h97VbjNs6Y%2bYNA%3d
1
FUEL TANK WITH LOCKING SCREW CAPACITY: 56 LITERS FROM CHASSIS 7510644
539000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=6UViROcjXVDwEl6lIF%2fnChyR7W3EiKSFMi85DcJrlvo%3d
1 шт
10
RUBBER HOSE FOR VENT PIPE
F66000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=T%2feCkGd5dh4nOsogPLnAcyJOj3hvAZvDq6uC6swU6ug%3d
1 шт
11
RUBBER HOSE FOR BREATHER PIPE
26C000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=T%2feCkGd5dh4nOsogPLnAc25oVpIuuBoQHDX3bbTudm8%3d
1 шт
11
LOCKING SCREW FOR LOCKING OF RETURN FLOW PIPE CONNECTION UP TO CHASSIS 7510643
FE1000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=T%2feCkGd5dh4nOsogPLnAc6517Ed2ecOJjNw22D48HkU%3d
1 шт
16
BREATHER PIPE
7F8000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=6UViROcjXVDwEl6lIF%2fnCtr95xPfiab7buWMPI%2fH344%3d
1 шт
17
SCREW WITH LOCKING PLATE FOR BREATHER PIPE AT FLOOR, REAR FROM CHASSIS 7513365
7E6000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=HWRZd4gPgymL4zL411RfIgnzUDuAJ7QrFJ6rbeN4kCs%3d
1 шт
2
ELECTRIC TRANSMITTER
56600022
code_image=http://www.elcats.ru/Codes.ashx?Key=ABG112tp1X0JvUgmbE431%2fbr1N%2bwS5FDXr1vqEoUlH8%3d
1 шт
25
REINFORCEMENT PLATE FOR FIXING FUEL TANK
A65000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=PFgdnJashWlZ8IPQOdEGWg0mNmEc5EQx2BGB1S8eigQ%3d
3 шт
29
FUEL FILLER NIPPLE
5D0000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=6UViROcjXVDwEl6lIF%2fnCtagMuHjAWtsEVLZoftYjnM%3d
1 шт
3
GASKET FOR ELECTRIC TRANSMITTER AT FUEL TANK
03800139
code_image=http://www.elcats.ru/Codes.ashx?Key=a10skckA3NmqAxgskNU9RsAGWJxnJhAlI%2bhkhqZCcRQ%3d
1 шт
30
RUBBER HOSE 35X43X78 FOR FILLER NIPPLE AT FILLER PIPE
1DC000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=T%2feCkGd5dh4nOsogPLnAc0CqU8%2bli5BuPYDGOkwhq7g%3d
1 шт
31
RUBBER HOSE FOR BREATHER PIPE AT FILLER NIPPLE
05400138
code_image=http://www.elcats.ru/Codes.ashx?Key=SSHctRiOmN3wS4vwlNtY5ZwwYVmiTeTOFFOwdUD4f38%3d
1 шт
32
VENT PIPE
65D000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=PFgdnJashWlZ8IPQOdEGWvLUAxwcxPUz6C4SWfAju5s%3d
1 шт
32a
SPRING CLAMP FOR VENT PIPE AT BREATHER PIPE
DFE000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=iehKVp5KMNWAJ9P8yqf2pYvVU4DZhByJ1HlbeunRyuA%3d
2 шт
33
SLEEVE, UPPER PART FOR FUEL TANK, FILLER NIPPLE THROUGH REAR MUDGUARD
669000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=PFgdnJashWlZ8IPQOdEGWhgKoWV%2b9PMwWfY0n8VLIjU%3d
1 шт
34
SLEEVE, LOWER PART FOR FUEL TANK, FILLER NIPPLE THROUGH REAR MUDGUARD
A6B000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=PFgdnJashWlZ8IPQOdEGWkPYOEhA3SaZacbElaBQ%2bGw%3d
1 шт
35
SLEEVE FOR VENT PIPE AT RECESS, REAR MUDGUARD
A68000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=PFgdnJashWlZ8IPQOdEGWlsCQV%2fjHWAmZeMEFz1Rwd4%3d
1 шт
36
STRAINER IN SLEEVE FOR VENT PIPE AT RECESS, REAR MUDGUARD
65A000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=PFgdnJashWlZ8IPQOdEGWvz%2ffzruVD2JrAdZZV1wvsQ%3d
1 шт
37
SCREW CAP FOR FUEL FILLER NIPPLE
299000EB
code_image=http://www.elcats.ru/Codes.ashx?Key=U5rGp50x8bHP6MQpVAZygbek%2f7FZeZPaiboo32HQ%2bqU%3d
1 шт
38
CONNECTION THREAD; M 12X1 AND M 14X1.5 MAKE ARMATUREN-WERKE OPTIONAL WITH 000 477 5601 UP TO CHASSIS 7519994
9FE0001F
code_image=http://www.elcats.ru/Codes.ashx?Key=BP8xDZpWOTkfEAHwmwGpQbGAQaJ2wE6OzfX929SitZ8%3d
1 шт
38
SEALING RING FOR SCREW CAP
23200140
code_image=http://www.elcats.ru/Codes.ashx?Key=SNbqCYQ6VxrdVl7cBHL87CS90IzWyVWwkAPyNeldFNE%3d
1 шт
40
FROM CHASSIS 7519995-7520514 Код заменен на
A040001F
code_image=http://www.elcats.ru/Codes.ashx?Key=BP8xDZpWOTkfEAHwmwGpQQajupViXIZoOJOlTGOV8SI%3d
41
GASKET BETWEEN HOUSING AND FILTER JUG UP TO CHASSIS 7520514
B6F0001F
code_image=http://www.elcats.ru/Codes.ashx?Key=BP8xDZpWOTkfEAHwmwGpQTAsQwKR%2fm7LmL%2b%2bw8ZBqIo%3d
1 шт
42
FILTER ELEMENT UP TO CHASSIS 7520514
AD00001F
code_image=http://www.elcats.ru/Codes.ashx?Key=BP8xDZpWOTkfEAHwmwGpQT%2bTPfoPyrbXjVlJTrTv3cA%3d
1 шт
42
FILTER JUG UP TO CHASSIS 7520514 Код заменен на
7E80001F
code_image=http://www.elcats.ru/Codes.ashx?Key=BP8xDZpWOTkfEAHwmwGpQVgy9g7HY7DwIdfm%2blDSyKc%3d
43
FILTER JUG UP TO CHASSIS 7520514
8B10001F
code_image=http://www.elcats.ru/Codes.ashx?Key=BP8xDZpWOTkfEAHwmwGpQTE%2bAM5GtLXbyPIwWgCLwJw%3d
1 шт
44
CONNECTION THREAD: M 12X1 AND M 14X1.5 MAKE KARCO OPTIONAL WITH 000 477 5501 UP TO CHASSIS 7519994
8C30001F
code_image=http://www.elcats.ru/Codes.ashx?Key=BP8xDZpWOTkfEAHwmwGpQZgrcZW3YCrQjFCn8aPMts4%3d
1 шт
44
LOCKING RING FOR FILTER ELEMENT UP TO CHASSIS 7519994
5B30004A
code_image=http://www.elcats.ru/Codes.ashx?Key=DedCnwS%2bHT39r4%2fE%2fPpNe%2b09%2bi9T8vsAxpZxaLdCX64%3d
1 шт
44
FILTER ELEMENT UP TO CHASSIS 7519994
8150001F
code_image=http://www.elcats.ru/Codes.ashx?Key=BP8xDZpWOTkfEAHwmwGpQX%2bA6XqZhsyGA2UHaix3AgA%3d
1 шт
44
FILTER JUG UP TO CHASSIS 7519994
7E80001F
code_image=http://www.elcats.ru/Codes.ashx?Key=BP8xDZpWOTkfEAHwmwGpQVgy9g7HY7DwIdfm%2blDSyKc%3d
1 шт
44
GASKET UP TO CHASSIS 7519994
A4F0001F
code_image=http://www.elcats.ru/Codes.ashx?Key=BP8xDZpWOTkfEAHwmwGpQc%2f7p2Mvp%2fy%2b8%2bvYv4%2btDKI%3d
1 шт
44
WIRE CLAMP WITH WING NUT AND CAP UP TO CHASSIS 7519994 Код заменен на
9320001F
code_image=http://www.elcats.ru/Codes.ashx?Key=BP8xDZpWOTkfEAHwmwGpQR%2fhPz3EMEayG9Vrqsf3ltA%3d
44
WIRE CLAMP WITH WING NUT AND CAP UP TO CHASSIS 7519994
8030001F
code_image=http://www.elcats.ru/Codes.ashx?Key=BP8xDZpWOTkfEAHwmwGpQUK5HRIeoBDufSZ4Ah3ALDI%3d
1 шт
44
WIRE CLAMP WITH WING NUT AND CAP UP TO CHASSIS 7520514
8030001F
code_image=http://www.elcats.ru/Codes.ashx?Key=BP8xDZpWOTkfEAHwmwGpQUK5HRIeoBDufSZ4Ah3ALDI%3d
1 шт
45
GASKET BETWEEN HOUSING AND FILTER JUG FROM CHASSIS 7520515 Код заменен на
7A60001F
code_image=http://www.elcats.ru/Codes.ashx?Key=BP8xDZpWOTkfEAHwmwGpQQZN6rIG7xHTpm7PMBXTvss%3d
45
CONNECTION THREAD: M 14X1.5 MAKE KNECHT FROM CHASSIS 7520515
8750001F
code_image=http://www.elcats.ru/Codes.ashx?Key=BP8xDZpWOTkfEAHwmwGpQT7xLbRoXq%2bDfpFTjMPx%2bho%3d
1 шт
46
GASKET BETWEEN HOUSING AND FILTER JUG FROM CHASSIS 7520515
8630001F
code_image=http://www.elcats.ru/Codes.ashx?Key=BP8xDZpWOTkfEAHwmwGpQYwuORhipYWf29NwXBWXyYk%3d
1 шт
47
FILTER ELEMENT MICRONIC FROM CHASSIS 7520515
97D0001F
code_image=http://www.elcats.ru/Codes.ashx?Key=BP8xDZpWOTkfEAHwmwGpQTNvxEjtFRefdK7bFmY5yCQ%3d
1 шт
48
GASKET BETWEEN FILTER ELEMENT AND HOUSING FROM CHASSIS 7520515 Код заменен на
9F20001F
code_image=http://www.elcats.ru/Codes.ashx?Key=BP8xDZpWOTkfEAHwmwGpQU21m3C39C%2fxVofvx%2fRlLW8%3d
48
SPRING FOR FILTER ELEMENT FROM CHASSIS 7520515
5C20004A
code_image=http://www.elcats.ru/Codes.ashx?Key=DedCnwS%2bHT39r4%2fE%2fPpNe%2bie7I7416vzT3cOyUgWnY4%3d
1 шт
48a
GASKET BETWEEN FILTER ELEMENT AND HOUSING FROM CHASSIS 7520515
A520001F
code_image=http://www.elcats.ru/Codes.ashx?Key=BP8xDZpWOTkfEAHwmwGpQbTyYXx4lTCnktt6DRoeRM4%3d
1 шт
49
FILTER JUG FROM CHASSIS 7520515
9380001F
code_image=http://www.elcats.ru/Codes.ashx?Key=BP8xDZpWOTkfEAHwmwGpQbjYv7eYoC7Zf2AwIQYFabM%3d
1 шт
50
WIRE CLAMP WITH WING NUT AND CAP FROM CHASSIS 7520515
71F0001F
code_image=http://www.elcats.ru/Codes.ashx?Key=BP8xDZpWOTkfEAHwmwGpQfVASGQ%2fGEz0GJ4Evyalucg%3d
1 шт
52
SHIM FOR FUEL FILTER AT FRAME FROM CHASSIS 6513347
55100046
code_image=http://www.elcats.ru/Codes.ashx?Key=diPViVXk5A3NiVu2GqV2kkzyeHdEsRZbhDnE7QrzF1o%3d
1 шт
53
CLIP FOR FUEL FILTER AT FRAME FROM CHASSIS 6513347
D5800049
code_image=http://www.elcats.ru/Codes.ashx?Key=DedCnwS%2bHT39r4%2fE%2fPpNe8USGSjvu3zVtlClpwyQqug%3d
1 шт
53
FUEL PIPE FROM FUEL TANK TO FILTER Код заменен на
01D000A0
code_image=http://www.elcats.ru/Codes.ashx?Key=OuHj9qzoPiMNMHrKsPrLkNSJsQZmjuByV8pIAmaQxWE%3d
53
REPLACED BY 105 470 02 70 FROM FUEL TANK TO FILTER Код заменен на
3ED000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=6UViROcjXVDwEl6lIF%2fnCoStlCg%2b52Odg7rzmYIxW1Y%3d
53
FUEL PIPE FROM FUEL TANK TO FILTER FROM CHASSIS 7510644-7519994
591000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=6UViROcjXVDwEl6lIF%2fnClV4yfWidkoBqugKgldGp6o%3d
1 шт
53
FUEL PIPE FROM FUEL TANK TO FILTER UP TO CHASSIS 7510643
4B8000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=6UViROcjXVDwEl6lIF%2fnCspwhASLlV4sLfrO8jT%2bqQE%3d
1 шт
55
FUEL HOSE FROM FILTER TO FUEL PUMP Код заменен на
4B0000C9
code_image=http://www.elcats.ru/Codes.ashx?Key=Lzaydpnr3v7Cm4u4k4oOrpQeqzMWZhzYp137eayJ2c8%3d
55
FUEL HOSE FROM FILTER TO FUEL PUMP UP TO CHASSIS 7519994
E9D000EA
code_image=http://www.elcats.ru/Codes.ashx?Key=5%2fqpW7khPtMKy7LMFNLpCVF4yxBh91H9xqABXixUX0w%3d
1 шт
55
FUEL PIPE FROM FUEL TANK TO FILTER FROM CHASSIS 7519995
D680009F
code_image=http://www.elcats.ru/Codes.ashx?Key=OuHj9qzoPiMNMHrKsPrLkBJih%2fK7r4bFI8AxR0%2fnIuA%3d
1 шт
60
RUBBER GUIDE FOR FUEL PIPE AND BRAKE PIPE UP TO CHASSIS 7519994
660000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=1ifF%2fCbzZUidomqCYVxDBVw74dkp1djXMjnV3tUCHU0%3d
7 шт
60
FUEL HOSE FROM FILTER TO FUEL PUMP FROM CHASSIS 7519995
FBF000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=Lzaydpnr3v7Cm4u4k4oOruvQcC2oxQwyax8GnVKs6bk%3d
1 шт
67
RUBBER GUIDE FOR FUEL PIPE AND BRAKE PIPE FROM CHASSIS 7519995
96B00136
code_image=http://www.elcats.ru/Codes.ashx?Key=uk94TzMWrz%2fyMqwRYFkccplALYuofEbLqLBO9Ux%2fx1k%3d
7 шт
68
FIXING CLAMP FOR FUEL LINE AND BRAKE PIPE AT FLOOR FROM CHASSIS 8508146
2AD00137
code_image=http://www.elcats.ru/Codes.ashx?Key=9aToOvMj6VPLna0%2ftaipwxC%2bvrzh0i74ULDAhGzEZhI%3d
7 шт
68
FIXING CLAMP FOR FUEL LINE AND BRAKE PIPE AT FLOOR UP TO CHASSIS 8508145
2AD00137
code_image=http://www.elcats.ru/Codes.ashx?Key=9aToOvMj6VPLna0%2ftaipwxC%2bvrzh0i74ULDAhGzEZhI%3d
4 шт
69
SCREW WITH LOCKING PLATE FOR FIXING CLAMP AT FLOOR
7E6000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=HWRZd4gPgymL4zL411RfIgnzUDuAJ7QrFJ6rbeN4kCs%3d
4 шт
69
SPRING CLAMP FOR FUEL PIPE AT ANGLE, WHEEL ARCH PAN UP TO CHASSIS 7519994
69B00046
code_image=http://www.elcats.ru/Codes.ashx?Key=GS1MUeBjlnL%2bShVaxjqMiqCL138w5%2fNXcwV2509Q1LU%3d
1 шт
8
INTERMEDIATE FITTING FOR FUEL PIPE CONNECTION UP TO CHASSIS 7510643
7C8000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=PFgdnJashWlZ8IPQOdEGWmbvmgpbG7x1ppmRYmyBiVQ%3d
1 шт
8
LOCKING SCREW FOR FUEL TANK, BOTTOM
7F5000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=6UViROcjXVDwEl6lIF%2fnCt%2bkwGwRwMevzZ5Qtp9iME0%3d
1 шт
