WHEELS AND TIRES / WHEELS AND TIRES — Mercedes-Benz TYP 190 121.010: схема и номера деталей | Глав Авто
Запчасти
/
WHEELS AND TIRES / WHEELS AND TIRES
Mercedes-Benz · TYP 190 · 121.010
WHEELS AND TIRES / WHEELS AND TIRES

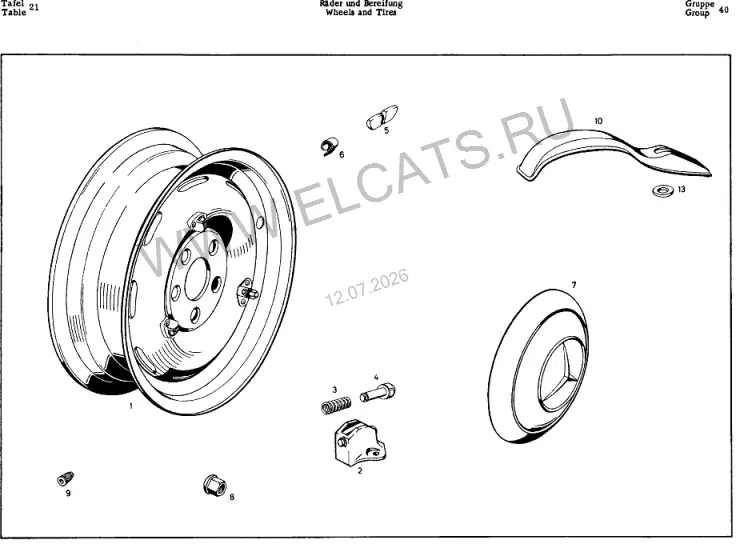

WHEELS AND TIRES [Z13]
Детали узла
22
1
DISC WHEEL WITH WELL-BASE RIM 4.5 KX13 FOR TIRES 6.4-13
3F6000C9
code_image=http://www.elcats.ru/Codes.ashx?Key=9ODyJWATnsFzkpFAufl9etm4QgGrCvU3PBN5Q9dfL2A%3d
5 шт
1
DISC WHEEL WITH WELL-BASE RIM 4.5 KX15 FOR TIRES 6.4-15 EXPORT, SPECIAL REQUEST
AD200137
code_image=http://www.elcats.ru/Codes.ashx?Key=AjZ5kHBs5HgtZQP%2bjK0bT4qjChRdrv5YIg%2f5FRBko6o%3d
5 шт
10
CLAMP FOR SPARE WHEEL AT BRACKET
627000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=M5DJDtcdiu%2bbKs%2fmtZlIM2Wr9HamjTNMWOmflo4Qiwo%3d
1 шт
13
RUBBER WASHER FOR SPARE WHEEL AT BRACKET
C0400044
code_image=http://www.elcats.ru/Codes.ashx?Key=IcoI0DdPvCnMfpZSwB5JR67Rl2b1IT5jVWEmSAGcg4Q%3d
1 шт
2
BRACKET FOR WHEEL COVER
37700136
code_image=http://www.elcats.ru/Codes.ashx?Key=bLBXMzAaohaJsLszHPf%2frSXspYj0KKkYCXcEIeO4inU%3d
15 шт
3
PRESSURE SPRING
F3E00136
code_image=http://www.elcats.ru/Codes.ashx?Key=Q2qYZgxaFoOSeoLVgqNTtWspkr3AzEO3XlQ%2fiR6FkvY%3d
15 шт
4
PIN
67700136
code_image=http://www.elcats.ru/Codes.ashx?Key=JeRUZ5IhxgJD3ulbuSCTTJXIaUpnpaRYXTu%2bAT%2b689I%3d
15 шт
4
PIN FOR TIRES 6.4-15 EXPORT, SPECIAL REQUEST
67700136
code_image=http://www.elcats.ru/Codes.ashx?Key=JeRUZ5IhxgJD3ulbuSCTTJXIaUpnpaRYXTu%2bAT%2b689I%3d
15 шт
4
PRESSURE SPRING FOR TIRES 6.4-15 EXPORT, SPECIAL REQUEST
F3E00136
code_image=http://www.elcats.ru/Codes.ashx?Key=Q2qYZgxaFoOSeoLVgqNTtWspkr3AzEO3XlQ%2fiR6FkvY%3d
15 шт
4
BRACKET FOR WHEEL COVER FOR TIRES 6.4-15 EXPORT, SPECIAL REQUEST
DCD00139
code_image=http://www.elcats.ru/Codes.ashx?Key=UL5AWCrWdcQgqMRjyqdRk0PC8M9QqHxg9x0V3K6CyLY%3d
15 шт
5
BALANCING WEIGHT 20 G OPTIONAL FOR DISC WHEEL
9BC000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2f9km1EF8NXaT1%2fIrory4fAY%3d
NB шт
5
BALANCING WEIGHT 30 G OPTIONAL FOR DISC WHEEL
704000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2f33VUivec%2b0vXymuVnOe8Rg%3d
NB шт
5
BALANCING WEIGHT 40 G OPTIONAL FOR DISC WHEEL
9CB000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2f5BoB48acyo0lVSo5Kjdb2M%3d
NB шт
5
BALANCING WEIGHT 50 G OPTIONAL FOR DISC WHEEL
791000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2fxaKQL0bdc13t1rYr3hM%2bEU%3d
NB шт
5
BALANCING WEIGHT 60 G OPTIONAL FOR DISC WHEEL
7B8000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2f%2f%2b%2fUjJrY0wun%2bYxSaDf1qU%3d
NB шт
5
BALANCING WEIGHT 70 G OPTIONAL FOR DISC WHEEL
7B5000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2f0G%2fgJdbVxHLbHTs13mCCPU%3d
NB шт
5
BALANCING WEIGHT 80 G OPTIONAL FOR DISC WHEEL
875000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2fxDkQO%2fN0kzo%2b2Ioq%2fF0a2w%3d
NB шт
6
BRACKET SPRING FOR BALANCING WEIGHT AT DISC WHEEL
6FE000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2f7u1z8P1XngcJvXL1gLiBf0%3d
NB шт
7
WHEEL COVER
BFA00138
code_image=http://www.elcats.ru/Codes.ashx?Key=GxRDWg3HR64XhQFczgrnmO7heY4vbkyAeULt5zQQ0mA%3d
4 шт
8
SPHERICAL COLLAR NUT FOR DISC WHEEL AT FRONT AND REAR AXLE SEE ALSO GROUP 33 AND 35
353000AC
code_image=http://www.elcats.ru/Codes.ashx?Key=7XtByzpM1KrSygrcOMg2xNygCUxtom9dGBI6ZP%2fSiUE%3d
12 шт
8
SPHERICAL COLLAR NUT FOR TIRES 6.4-15 FOR DISC WHEEL AT FRONT AND REAR AXLE SEE ALSO GROUP 33 AND 35
F39000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=U6a03FoPiYYZKQnuJZbwagOk%2bsZyPQm%2b32CfewJXXCg%3d
20 шт
9
VALVE CAP WITH DUST CAP FOR HOSE VALVE
30C000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=D%2f8p2ydOr5MTQm%2fmdgGmt0r61qGF5JSbu5H7xKwIdhA%3d
5 шт
