OIL PUMP / OIL PUMP — Mercedes-Benz TYP 190 121.011: схема и номера деталей | Глав Авто
Запчасти
/
OIL PUMP / OIL PUMP
Mercedes-Benz · TYP 190 · 121.011

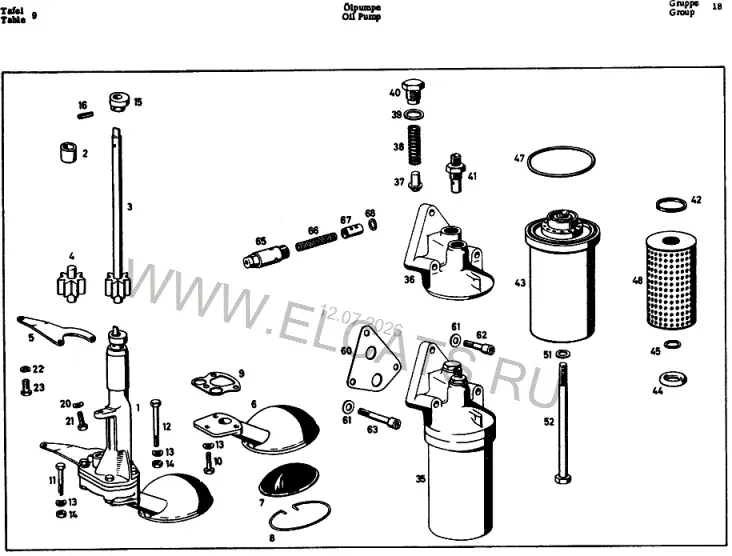

OIL PUMP / OIL PUMP
OIL PUMP [Z12]
Детали узла
50
0
OIL PUMP Код заменен на
C4D000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=BedVNI2upkMruv%2bqftftXF9exe4z%2bdkxQNCCREq3Zo8%3d
1
OIL PUMP
A2E000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=BedVNI2upkMruv%2bqftftXC1O0%2fq2fiS999UzFCnt7bk%3d
1 шт
15
REPLACED BY 000 184 77 01 UP TO ENGINE 8510158 SUCTION BASKET 121 180 14 52 IS TO BE DELIVERED
67C00008
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5kbLD5n%2fpfH3eFHfY1Nz8WQ%3d
15
REPLACED BY 000 184 77 01 UP TO ENGINE 8510158 SUCTION BASKET 121 180 14 52 IS TO BE DELIVERED
746000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=BedVNI2upkMruv%2bqftftXM9HaGowWgvopp8g27y8xc0%3d
15
REPLACED BY 000 184 77 01 UP TO ENGINE 8510158 SUCTION BASKET 121 180 14 52 IS TO BE DELIVERED
7FD00007
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5m2WC0ZlEhkNRkT%2fZ0oRD78%3d
15
SEALING RING FOR OIL FILTER HOUSING, UPPER AND LOWER PART UP TO ENGINE 9500202
96100137
code_image=http://www.elcats.ru/Codes.ashx?Key=V%2bd3k3E9XZZM3vJGfCyyYmbpCwh%2biKk%2b9oxezFALPqE%3d
1 шт
15
OIL, FILTER HOUSING, UPPER PART UP TO ENGINE 9500202
727000C8
code_image=http://www.elcats.ru/Codes.ashx?Key=DiH4zJG3%2ffpWsOwFtwJ41%2bjP2WwKxLW4pfA6WB37aaA%3d
1 шт
15
FILTER ELEMENT MICRONIC ELEMENT UP TO ENGINE 9500202 Код заменен на
6D400007
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5sdL0OANuTB53ZJTm42vPlY%3d
15
FILTER ELEMENT MICRONIC ELEMENT UP TO ENGINE 9500202
6D100007
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5qNywqiS2T9jpvtzm6igTTk%3d
1 шт
15
CAM ON OIL PUMP DRIVE SHAFT FOR FUEL FEED PUMP
B6A00135
code_image=http://www.elcats.ru/Codes.ashx?Key=VB8%2f0smdlUVvIN5rMvi5mYX08%2bUQQGVnKI4mtye0w%2bw%3d
1 шт
15
COIL UP TO ENGINE 9500202
4D600007
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5v3irzEZiLrZ1Ei6DOZtoQI%3d
1 шт
15
HEX. NUT UP TO ENGINE 9500202
6A300047
code_image=http://www.elcats.ru/Codes.ashx?Key=diPViVXk5A3NiVu2GqV2krd4NOaHFuJvhV1PdvDo9DQ%3d
1 шт
15
HOUSING UP TO ENGINE 9500202
86300007
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5qiw5oiUPGUyLNhTjeiDrzA%3d
1 шт
15
HOUSING, COMPLETE UP TO ENGINE 9500202
3C000009
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5g0QcHLk7KnqCYAeD1SIFAY%3d
1 шт
15
LOCKING SCREW UP TO ENGINE 9500202
56500137
code_image=http://www.elcats.ru/Codes.ashx?Key=Mft1tjXqYYhWbsa6K%2f0eUwsB6a1p3%2fyqDgR5UXQWB8I%3d
2 шт
15
SCREWED NIPPLE UP TO ENGINE 9500202
4A500137
code_image=http://www.elcats.ru/Codes.ashx?Key=Mft1tjXqYYhWbsa6K%2f0eU4Z5rvm%2bqe8MeOkhg9ux7hY%3d
1 шт
15
SEALING RING UP TO ENGINE 9500202 Код заменен на
26100009
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5uQVMsUpO9yje3C%2fX3m4VKs%3d
15
SEALING RING UP TO ENGINE 9500202
69B00007
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5kXpay0ld%2fGz4SGaU9KRm7c%3d
1 шт
15
SEALING RING UP TO ENGINE 9500202
7EB00007
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5hv%2fDo5A48gHBGaDlAbPJgY%3d
1 шт
15
SPRING UP TO ENGINE 9500202
E7900138
code_image=http://www.elcats.ru/Codes.ashx?Key=qkeb6y27apBaU1F4iCU8I2J2m%2bLPka1ygVNiqYVtk1A%3d
2 шт
15
VALVE CONE UP TO ENGINE 9500202
3D300137
code_image=http://www.elcats.ru/Codes.ashx?Key=Mft1tjXqYYhWbsa6K%2f0eU23D9UxFnJmA5%2bJbV2IyiTA%3d
2 шт
15
DISCHARGE CAP WITH SEALING RING UP TO ENGINE 9500202
56F00007
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5jW2TrBjEB4rK1%2b9v5Ct28c%3d
1 шт
2
BEARING BUSHING, TOP
BFD00135
code_image=http://www.elcats.ru/Codes.ashx?Key=h%2bFz88KCi1OZTN1A182O6q%2bnacJPt75Zs6O3vJ84HhY%3d
1 шт
3
DRIVE SHAFT
A2B000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=BedVNI2upkMruv%2bqftftXMjQhC5siVSfulalXGD%2bRjc%3d
1 шт
35
OIL FILTER, COMPLETE
26D00009
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5mfXN0kjG%2bcBOEvjDRCSibg%3d
1 шт
36
OIL FILTER HOUSING, UPPER PART FROM ENGINE 9500203
3B900007
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5n71n%2b2FYcZBvCTXiIwRNRc%3d
1 шт
37
VALVE CONE FROM ENGINE 9500203
3D300137
code_image=http://www.elcats.ru/Codes.ashx?Key=Mft1tjXqYYhWbsa6K%2f0eU23D9UxFnJmA5%2bJbV2IyiTA%3d
1 шт
38
SPRING FROM ENGINE 9500203
E7900138
code_image=http://www.elcats.ru/Codes.ashx?Key=qkeb6y27apBaU1F4iCU8I2J2m%2bLPka1ygVNiqYVtk1A%3d
1 шт
4
OIL PUMP
B6C000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=BedVNI2upkMruv%2bqftftXANNqaaV35IAksT03gtLQ80%3d
1 шт
4
BRACKET UP TO ENGINE 6507301 IN ADDITION MOUNTED IN 6509396 - 6509695
A43000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=CXPIcuWShHi7jUCF4t1wk0rMFZSG6H%2b1kk6SgwJ%2fPTE%3d
1 шт
40
LOCKING SCREW FROM ENGINE 9500203
3B600007
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5uLHpTEf6Qw0fvWFNb%2bmeEM%3d
1 шт
41
CONNECTION PIECE FROM ENGINE 9500203
4A500137
code_image=http://www.elcats.ru/Codes.ashx?Key=Mft1tjXqYYhWbsa6K%2f0eU4Z5rvm%2bqe8MeOkhg9ux7hY%3d
1 шт
42
SEALING RING FROM ENGINE 9500203
B3900007
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5mrHsauxXRJyQThDp5H8wpc%3d
1 шт
43
HOUSING FROM ENGINE 9500203
B0C00007
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5vIhycMmxZFEbS%2fXdzG87bk%3d
1 шт
44
SEALING RING FROM ENGINE 9500203
7EB00007
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5hv%2fDo5A48gHBGaDlAbPJgY%3d
1 шт
45
SEALING RING FROM ENGINE 9500203
ABE00007
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5r7Ebf%2fyV98qEofAexG0u1w%3d
1 шт
47
SEALING RING FOR OIL FILTER HOUSING, UPPER PART AT LOWER PART FROM ENGINE 9500203
96100137
code_image=http://www.elcats.ru/Codes.ashx?Key=V%2bd3k3E9XZZM3vJGfCyyYmbpCwh%2biKk%2b9oxezFALPqE%3d
1 шт
48
FILTER ELEMENT FROM 501 KILOMETERS ONWARDS SEE INSTRUCTION MANUAL FROM ENGINE 9500203
86F00007
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5sfpz8NyzY8hOYoHHgPmIdQ%3d
1 шт
48
FILTER ELEMENT UP TO 500 KILOMETERS SEE INSTRUCTION MANUAL FROM ENGINE 9500203
79D00007
code_image=http://www.elcats.ru/Codes.ashx?Key=I6F9YcNiqdriaERPkfLk5ojIaQXHMq%2bBzgqDkEPNGoQ%3d
1 шт
5
Код заменен на
E72000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=BedVNI2upkMruv%2bqftftXKjft8xuo7IA9MWSjqwL4Gg%3d
5
SUCTION BASKET Код заменен на
B3C000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=BedVNI2upkMruv%2bqftftXER693BbloV9%2bZWyRrIRxSE%3d
5
BRACKET FROM ENGINE 6507302 WITH EXCEPTION OF 6509396 - 6509695
AAB000C8
code_image=http://www.elcats.ru/Codes.ashx?Key=CXPIcuWShHi7jUCF4t1wk4IAnVE7rdNYLt9VUAa4PmI%3d
1 шт
6
SUCTION BASKET FROM ENGINE 8510159
A58000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=BedVNI2upkMruv%2bqftftXM%2blybIpwd%2fBp0PpKetuz2o%3d
1 шт
60
GASKET FOR OIL FILTER HOUSING AT CYLINDER CRANKCASE
860000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=DiH4zJG3%2ffpWsOwFtwJ412v89YEiCzOWnZuxbWuu9%2fk%3d
1 шт
65
OIL PRESSURE RELIEF VALVE
A28000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=BedVNI2upkMruv%2bqftftXP8ZgffC31SYekdFVsF%2fJcQ%3d
1 шт
66
SPRING
67D00139
code_image=http://www.elcats.ru/Codes.ashx?Key=D9AAg63CbEh9wVxAXyi%2f0nFbUmGTgEjmlclFPBElGPE%3d
1 шт
67
PISTON
275000F7
code_image=http://www.elcats.ru/Codes.ashx?Key=mcpQ8m3oX5xBq3%2bhoE6MTciFQtSFL6Z%2fmWL4bw9FnHU%3d
1 шт
7
STRAINER FROM ENGINE 8510159
6DC000C8
code_image=http://www.elcats.ru/Codes.ashx?Key=BedVNI2upkMruv%2bqftftXMv9Pa0JKeRqt%2bKhA6Wz%2bNI%3d
1 шт
8
SNAP RING FROM ENGINE 8510159
50B0004A
code_image=http://www.elcats.ru/Codes.ashx?Key=DedCnwS%2bHT39r4%2fE%2fPpNe4TfC8G0%2bjsp0uapRvbCu%2b4%3d
1 шт
9
GASKET FOR LOWER PART AND SUCTION BASKET AT UPPER PART
B72000C7
code_image=http://www.elcats.ru/Codes.ashx?Key=4Va3mASFoeKIzYj6LUvy0nin7KT5wFKprAlpmhAUb6A%3d
1 шт
