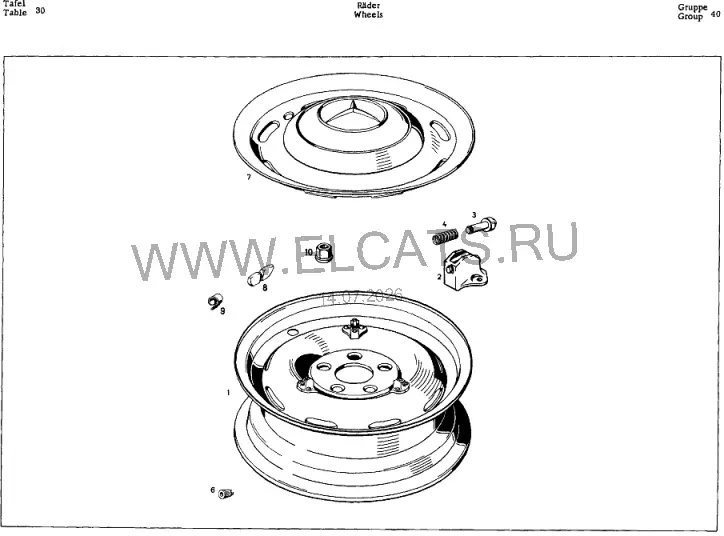

WHEELS / WHEELS — Mercedes-Benz TYP 300d 189.033: схема и номера деталей | Глав Авто
Запчасти
/
WHEELS / WHEELS
Mercedes-Benz · TYP 300d · 189.033
WHEELS / WHEELS
WHEELS
Детали узла
36
1
DISC WHEEL WITH WELL-BASE RIM 5,5 K X 15 FOR TIRES 7.60-15
CC300138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSl46jNc3N8Bug6x4qcm2vi8%3d
5 шт
10
SPH. COLLAR NUT FOR DISC WHEEL AT FRONT AXLE AND REAR AXLE SEE ALSO GROUP 33 AND 35
2D7000EC
code_image=http://www.elcats.ru/Codes.ashx?Key=O5oXOLwqGqjZLMRqj5A9BdHO0hZULSZYko0SXrFqZ2Q%3d
12 шт
2
BRACKET FOR WHEEL COVER
DCD00139
code_image=http://www.elcats.ru/Codes.ashx?Key=UL5AWCrWdcQgqMRjyqdRk0PC8M9QqHxg9x0V3K6CyLY%3d
15 шт
3
PIN
67700136
code_image=http://www.elcats.ru/Codes.ashx?Key=JeRUZ5IhxgJD3ulbuSCTTJXIaUpnpaRYXTu%2bAT%2b689I%3d
15 шт
4
PRESSURE SPRING
F3E00136
code_image=http://www.elcats.ru/Codes.ashx?Key=Q2qYZgxaFoOSeoLVgqNTtWspkr3AzEO3XlQ%2fiR6FkvY%3d
15 шт
4
REPLACED BY 4 DIN 6799
3B900139
code_image=http://www.elcats.ru/Codes.ashx?Key=WzK7yJEssf2oawObBWhYqI9B57rZPmwEStIBNLaAAVA%3d
6
VALVE CAP WITH DUST CAP FOR TUBE VALVE
30C000C6
code_image=http://www.elcats.ru/Codes.ashx?Key=D%2f8p2ydOr5MTQm%2fmdgGmt0r61qGF5JSbu5H7xKwIdhA%3d
5 шт
6
SNAP-IN VALVE FOR TUBELESS TIRES SPECIAL REQUEST
C1800015
code_image=http://www.elcats.ru/Codes.ashx?Key=OTfXRbn0geVJn0Ps23fG48eEmS9p3s7b%2bC9H3Or4HI4%3d
5 шт
7
RIM EMBELLISHER
03E00139
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSh1kqhopHZQ2ZmlqzaPey8k%3d
4 шт
7
REPLACED BY 110 401 09 94 - 110 401 19 94 TOGETHER WITH SPRING 110 401 01 28
04100139
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSnnuThPs%2b9gm0UN9X7naPdo%3d
7
REPLACED BY 110 401 09 94 - 110 401 19 94 TOGETHER WITH SPRING 110 401 01 28
0B300139
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSgOJGTAlZE%2brhpYPbrU1cTA%3d
7
REPLACED BY 110 401 09 94 - 110 401 19 94 TOGETHER WITH SPRING 110 401 01 28
18800139
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSgOvI6OYfJAMntVByJZUzHE%3d
7
REPLACED BY 110 401 09 94 - 110 401 19 94 TOGETHER WITH SPRING 110 401 01 28
B4F00138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSlZdMxMtlhz5pvXSN35nS%2fI%3d
7
REPLACED BY 110 401 09 94 - 110 401 19 94 TOGETHER WITH SPRING 110 401 01 28
BF400138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSh9xZbSn5Ytck8iSm3bhX5o%3d
7
REPLACED BY 110 401 09 94 - 110 401 19 94 TOGETHER WITH SPRING 110 401 01 28
BF700138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSls5oBoWG%2b77SvZDJedt2zc%3d
7
REPLACED BY 110 401 09 94 - 110 401 19 94 TOGETHER WITH SPRING 110 401 01 28
C0300138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSuKSP7NhPbxJbSNY36ZICPU%3d
7
REPLACED BY 110 401 09 94 - 110 401 19 94 TOGETHER WITH SPRING 110 401 01 28
C0600138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSii3YH8Nc7nX%2bWFrwFd%2brPs%3d
7
REPLACED BY 110 401 09 94 - 110 401 19 94 TOGETHER WITH SPRING 110 401 01 28
C7200138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSklT9QvVHzVq5BW4j4G3PVQ%3d
7
REPLACED BY 110 401 09 94 - 110 401 19 94 TOGETHER WITH SPRING 110 401 01 28
C8400138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSqus5z%2bVM9Kxz5JwCFRSdjo%3d
7
REPLACED BY 110 401 09 94 - 110 401 19 94 TOGETHER WITH SPRING 110 401 01 28
CA500138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSnlxHBLA3FgilF0A84HEl0Y%3d
7
REPLACED BY 110 401 09 94 - 110 401 19 94 TOGETHER WITH SPRING 110 401 01 28
CA800138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSuD8o3spdm5MzPHEpIChdBs%3d
7
REPLACED BY 110 401 09 94 - 110 401 19 94 TOGETHER WITH SPRING 110 401 01 28
DC200138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSib6ERAChmePxvmIkiINRcc%3d
7
REPLACED BY 110 401 09 94 - 110 401 19 94 TOGETHER WITH SPRING 110 401 01 28
FE700138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsSqIJHvxv5rKwOdqd2St5pNk%3d
7
REPLACED BY 110 401 09 94 - 110 401 19 94 TOGETHER WITH SPRING 110 401 01 28
FEA00138
code_image=http://www.elcats.ru/Codes.ashx?Key=iZtAQmRQefHluj66RQFsStxGTlAgrr6Jm%2bTgxYstHG8%3d
8
BALANCING WEIGHT 110 G OPTIONAL FOR DISC WHEEL
707000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2fzN3tOshZeQjo826STZlK84%3d
NB шт
8
BALANCING WEIGHT 110 G OPTIONAL FOR DISC WHEEL
70A000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2f1Q8agG7sTPFAk%2fewyTMbEY%3d
NB шт
8
BALANCING WEIGHT 120 G OPTIONAL FOR DISC WHEEL
794000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2fxmI6oQ2meTR8HEFXBEYsz8%3d
NB шт
8
BALANCING WEIGHT 20 G OPTIONAL FOR DISC WHEEL
9BC000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2f9km1EF8NXaT1%2fIrory4fAY%3d
NB шт
8
BALANCING WEIGHT 30 G OPTIONAL FOR DISC WHEEL
704000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2f33VUivec%2b0vXymuVnOe8Rg%3d
NB шт
8
BALANCING WEIGHT 40 G OPTIONAL FOR DISC WHEEL
9CB000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2f5BoB48acyo0lVSo5Kjdb2M%3d
NB шт
8
BALANCING WEIGHT 50 G OPTIONAL FOR DISC WHEEL
791000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2fxaKQL0bdc13t1rYr3hM%2bEU%3d
NB шт
8
BALANCING WEIGHT 60 G OPTIONAL FOR DISC WHEEL
7B8000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2f%2f%2b%2fUjJrY0wun%2bYxSaDf1qU%3d
NB шт
8
BALANCING WEIGHT 70 G OPTIONAL FOR DISC WHEEL
7B5000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2f0G%2fgJdbVxHLbHTs13mCCPU%3d
NB шт
8
BALANCING WEIGHT 80 G OPTIONAL FOR DISC WHEEL
875000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2fxDkQO%2fN0kzo%2b2Ioq%2fF0a2w%3d
NB шт
8
BALANCING WEIGHT 90 G OPTIONAL FOR DISC WHEEL
8A8000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2f0ZU1AECUuIJWyMu4Yo9JJE%3d
NB шт
9
SPRING FOR BALANCING WEIGHT AT DISC WHEEL
6FE000A9
code_image=http://www.elcats.ru/Codes.ashx?Key=P%2fG0%2bYDdhao9apb2aJPa%2f7u1z8P1XngcJvXL1gLiBf0%3d
NB шт
